Запчасти Case IH 1170 (044) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

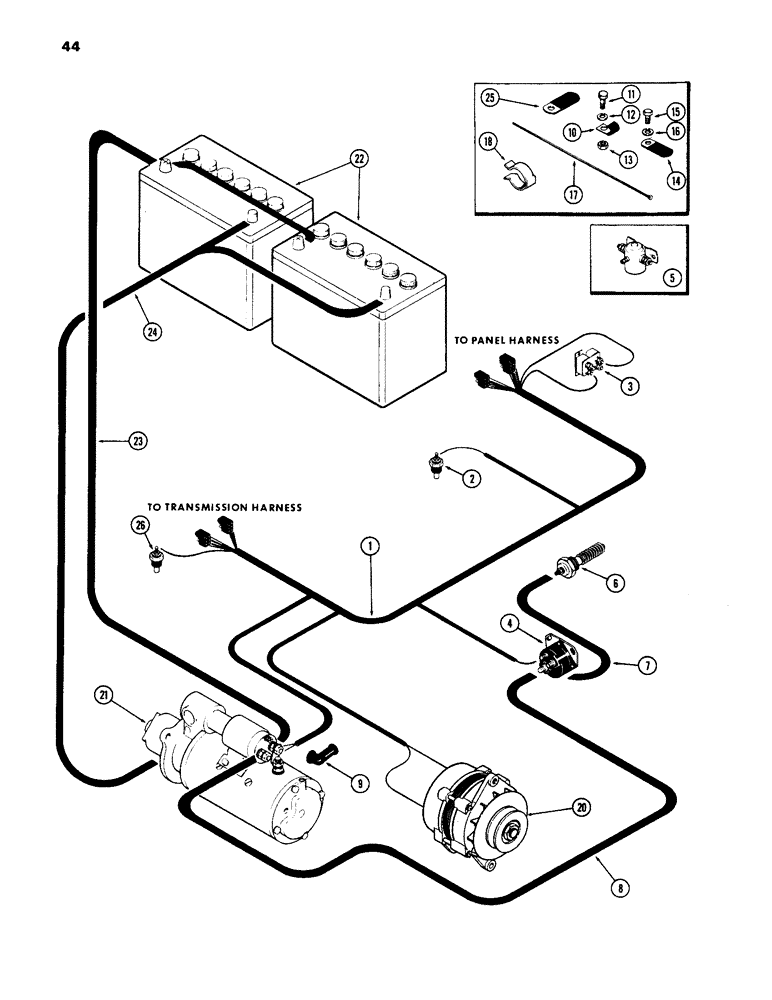

Схема запчастей Case IH 1170 - (044) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS
3
13
7
17
4
5
18
2
25
21
20
14
8
24
12
10
6
23
26
16
9
22
11
15
1

Артикул

Название

Примечание

Количество

1

A61933

HARNESS

- engine wire

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending

1шт.

3

A59704

BREAKER

- circuit (See Figure 50)

1шт.

4

A39079

SOLENOID

- manifold heater (See Figure 50) (used prior tgo trac. ser. no. 8670718)

1шт.

5

A57069

SOLENOID

- manifold heater (See Figure 50) (used prior to trac. ser. no. 8670718)

1шт.

6

A37775

HEATER

- manifold, Serial Range: heater-solenoid

1шт.

7

A61932

WIRE - manifold, Serial Range: heater-solenoid

1шт.

8

A59718

CLAMP

WIRE - heater, Serial Range: solenoid-starter

1шт.

9

A21753

CAP

- starter, positive terminal & heater solenoid, battery terminal, rubber

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - 5/16 X 5/8" std. pan hd. mach

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A37179

CLIP

- alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

A61062

ALTERNATOR ASSY. - (See Figure 58)

1шт.

21

A59217

STARTER MOTOR

STARTER ASSY. - (See Figures 52 and 53A)

1шт.

22

A38411

DRY BATTERY

- 12 V.

2шт.

23

A62141

ELECTRIC CABLE

CABLE - battery, positive

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.

26

A61463

SWITCH

- oil pressure sending

1шт.

Выбрано товаров: 25
