Запчасти Case IH 1170 (042) - INSTRUMENTS AND WIRING, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

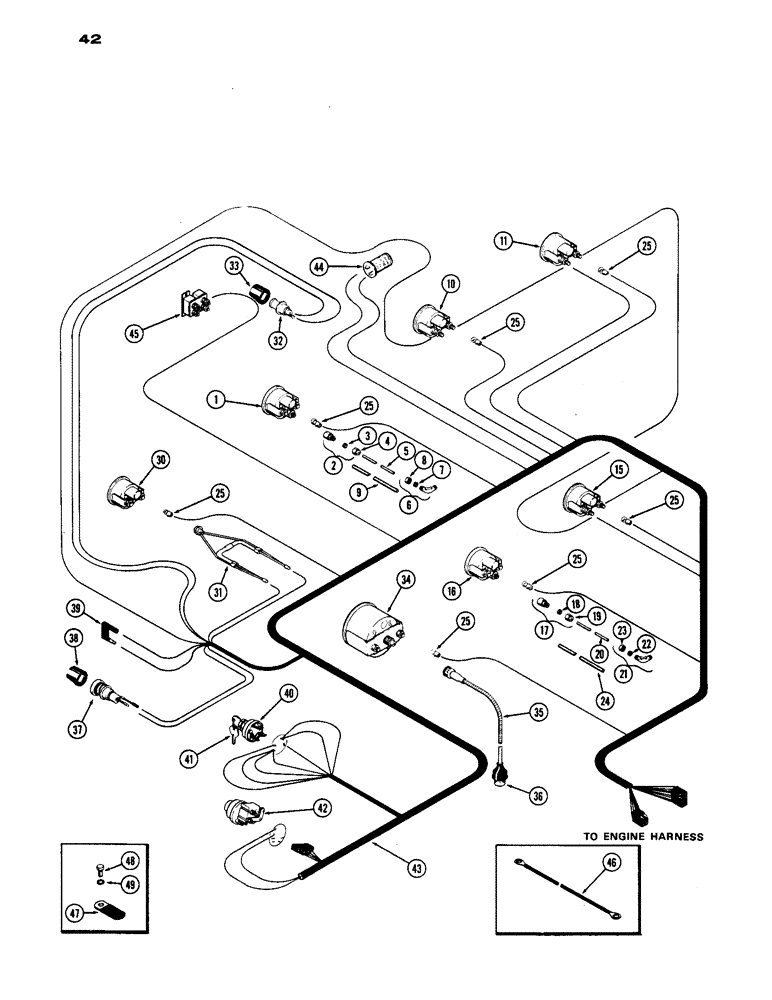

Схема запчастей Case IH 1170 - (042) - INSTRUMENTS AND WIRING, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
23
37
45
49
24
8
11
20
30
39
25
4
25
36
25
5
33
7
15
44
18
38
31
2
48
25
35
22
19
25
34
41
43
16
32
42
21
3
25
9
1
46
6
17
40
25
47
10

Артикул

Название

Примечание

Количество

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes: Ref. 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A59679

TUBE

- engine oil pressure

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90deg., 1/8" tube, 1/8" P.T., Includes: Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A61786

ELECTRICAL GAUGE

GAUGE - engine temp. (120 deg. to 580 deg.)(Replaces A61785)

1шт.

11

A59682

ELECTRICAL GAUGE

GUAGE - fuel

1шт.

15

A59683

GAUGE

- transmission temperature

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure (P.T.O.)

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes: Ref. 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- pressure guage tube

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube, 1/8" P.T., Includes: Ref. 22 and 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- transmission pressure guage tube

1шт.

25

A14553

BULB

- gauges (replaces T29381)

7шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alternator warning lamp

1шт.

32

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12 V. flasher (red)

1шт.

33

A62677

GUARD

SHROUD - hand brake warning lamp (1st used trac. ser. no. 8675001)

1шт.

34

A62600

TACHOMETER

ASSY. - (w/600 to 2300 R.P.M. green band) (used prior to trac. ser. no. 8675001)

1шт.

34

A59733

TACHOMETER

ASSY. (w/1400 to 2150 R.P.M. green zone) (used prior to trac. ser. no. 8675001)

1шт.

35

A59691

CABLE

ASSY. - tachometer drive, w/boot, Includes: Ref. 36

1шт.

36

A24523

KIT

- Tachometer cable repair

1шт.

37

A61505

LAMP

- oil filter warning

1шт.

A42296

BULB

- oil filter warning, red

1шт.

38

A62677

GUARD

SHROUD - oil filter warning lamp (1st used trac. ser. no. 8675001)

1шт.

39

A61504

DIODE

LEAD DIODE - 180deg. connection

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (set of 2)(replaces A42212)

1шт.

42

A59694

SWITCH

ASSY. - lights (See Figure 64)

1шт.

43

A61502

HARNESS

- instrument panel wire

1шт.

44

A34867

FLASHER UNIT

- 12 V.

1шт.

45

A59704

BREAKER

- circuit, 80 amp. (See Figure 50)

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.

47

A37179

CLIP

- instrument wire harness

1шт.

48

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

49

92-5

LOCK WASHER,5/16"

1шт.

Выбрано товаров: 45
