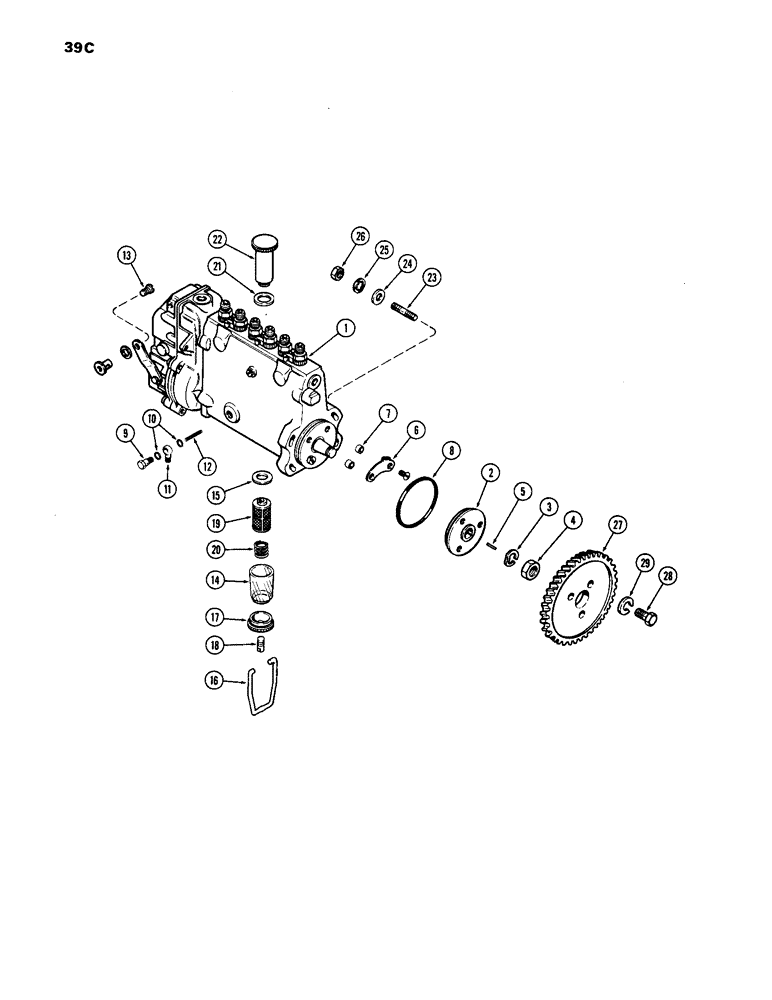

Запчасти Case IH 1170 (039C) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, WITH FILTER & HAND PRIMER, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62331

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2100 R.P.M.), Includes: Ref. 2 - 22

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

2

A41853

HUB

- drive (w/1/8: keyway)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

2

A41857

HUB

- drive (w/11/64" keyway)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

3

A41851

LOCK WASHER

- lock (31/64" I.D.)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

3

A41851

LOCK WASHER

- lock (9/16" I.D.)(Heavy Duty.)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

4

A42313

NUT

- hub (12 mm. thrd.)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

4

A41852

LOCK NUT

- hub (14 mm. thrd.)(Heavy Duty.)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

5

A20933

KEY

- hub to shaft (1/8" wide)(Std.)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

5

A41850

KEY

- hub to shaft (1164" wide)(Heavy Duty)

1шт.

Heavy Duty Production Pumps Have a Heavy Duty Drive Shaft. These Pumps Are Identified By Serial No. With 132 As First Three Digits. These Pumps Will Require Heavy Duty Parts Listed Above, All Others Use Std. Parts.

1шт.

6

A41854

INDICATOR

POINTER - hub adjustment

1шт.

7

A41855

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mtg. (2-61/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump (banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump (copper)

2шт.

22

A43343

CARTRIDGE

PUMP - hand primer

1шт.

23

A58689

STUD

- inj. pump mtg. (3/8" N.C. x 1-7/8")

4шт.

24

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

25

192-30

WASHER - int. skpf., 3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

27

A58693

GEAR

- injection pump drive

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.
