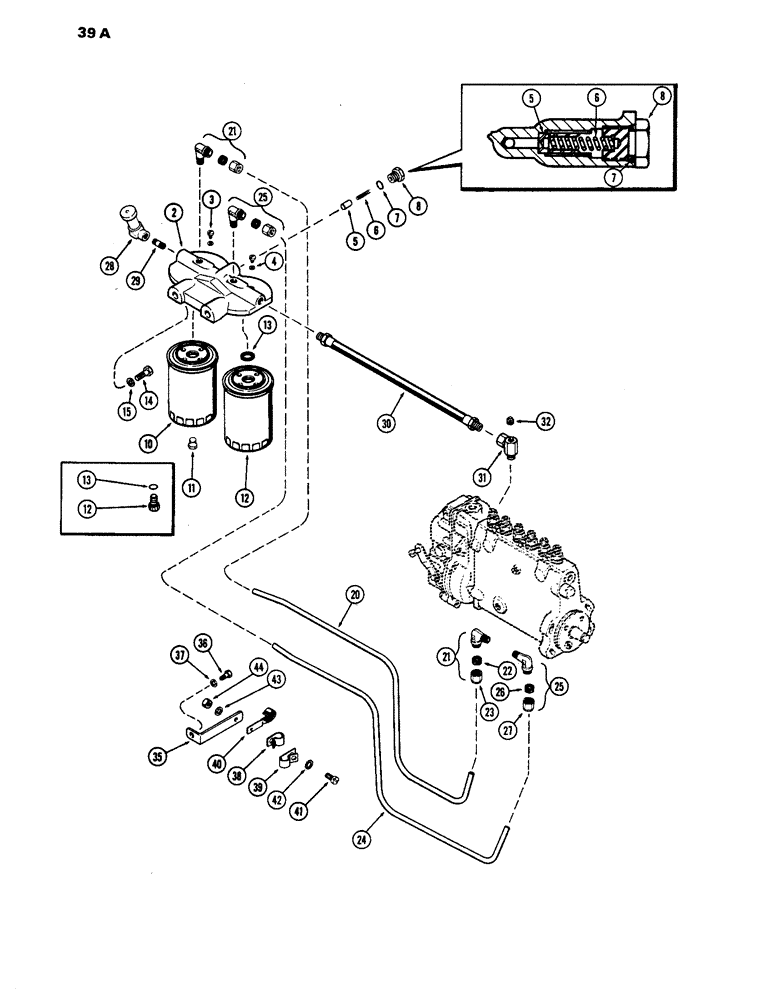

Запчасти Case IH 1170 (039A) - FUEL INJECTION FILTER SYSTEM, (451) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY. - primary (1st & 2nd stage), Includes: Ref. 2 - 8

1шт.

2

A58711

FILTER

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

A24917

PLUNGER

- relief valve

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug, 1/2 x 11/16 x 3/32"

1шт.

8

A24916

PLUG

- relief valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin-on filters, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 11 - 13

1шт.

11

221-1661

PLUG

- drain (1/8" P.T. steel)

1шт.

12

G49080

PLUG

- drain (plastic)

1шт.

13

A27981

TUBE

"O" RING - plastic plug (3/8 x 9/16 x 3/32")

1шт.

14

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 15

1шт.

15

A42315

GASKET

- 2nd stage filter

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

20

A58714

TUBE

- 1st, Serial Range: stage-pump

1шт.

32

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 22 and 23

3шт.

22

222-104

SLEEVE,3/8" Tube

- for 3/8"tube

1шт.

23

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

24

A58715

TUBE

- pump to 2nd stage

1шт.

25

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 26 and 27

2шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

28

A60042

PUMP

- hand primer

1шт.

28

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

28

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

29

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" P.T. x 1"

1шт.

30

A58716

HOSE

- filter, Serial Range: head-pump

1шт.

31

A20539

FITTING

UNION - switch (in injection pump)

1шт.

32

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

35

A58718

BRACKET

-, Serial Range: tubes-block

1шт.

36

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

49852

PTO SHAFT

Clip - tube, for 5/16" tube

1шт.

39

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube, for 3/8" tube

1шт.

40

A59112

CLIP - hose

1шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

42

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

44

25-104

NUT,1/4"-20, G5

1шт.
