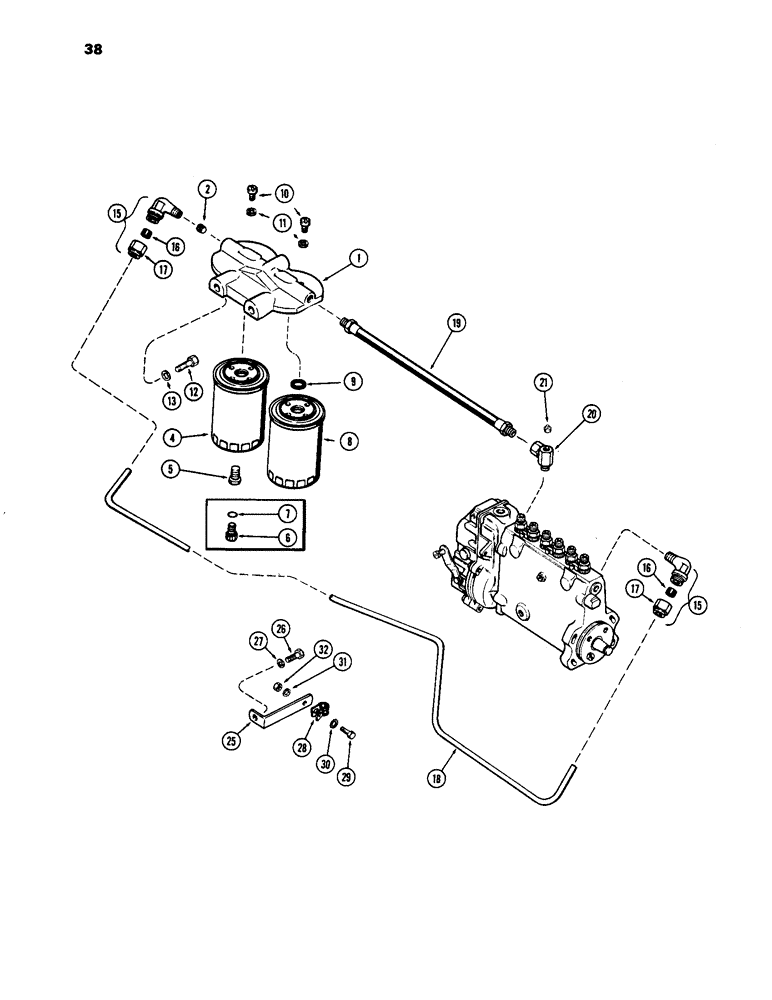

Запчасти Case IH 1170 (038) - FUEL INJECTION FILTER SYSTEM, (451B) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - 1st & 2nd stage filter, Includes: Ref. 2

1шт.

2

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

PLUG - 1/8" P.T. (in head)

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin-on filters, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - 1st stage

1шт.

5

221-1661

PLUG

- drain, (1/8" P.T. steel)

1шт.

6

G49080

PLUG

- drain (plastic)

1шт.

7

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - plastic plug (3/8 x 9/16 x 3/32")

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 9

1шт.

9

A42315

GASKET

- 2nd stage filter

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

11

A20662

GASKET

WASHER - bleed screw

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

- for 3/8" tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 3/8" tube

1шт.

18

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

19

A58716

HOSE

-, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - switch (in inj. pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union (1/8" P.T.)

1шт.

25

A58717

TUBE

BRACKET - tube support

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

CLIP - tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
