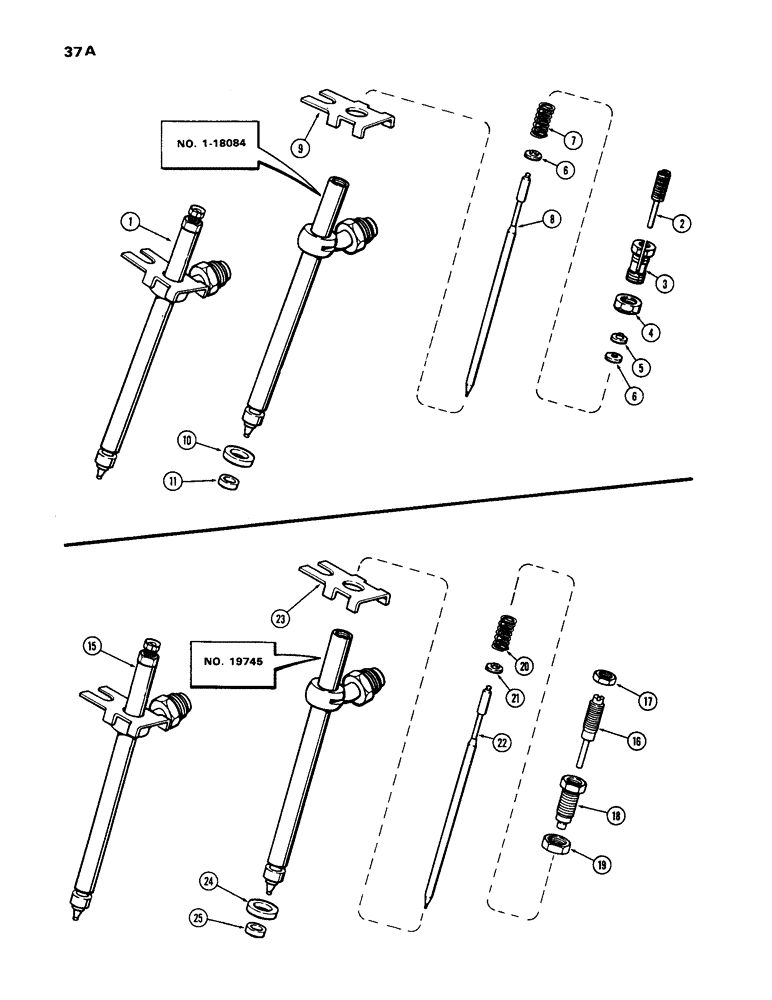

Запчасти Case IH 1170 (037A) - FUEL INJECTION NOZZLE, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A58694

NOZZLE

ASSY. - fuel injection (Supplier's No. I-18084 stamped on body) (Order A62809), Includes: Ref. 2 - 11

6шт.

Whenever Nozzle Is Removed From Head, The Seal Ref. 11 Or 25 & Washer Ref. 10 Or 24 Must Be Replaced Before Nozzle Is Installed Back In Head

1шт.

A138322R

REMAN-INJECT NOZZLE

1170 DIESEL (1/70-12/71) REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

3

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

4

A42424

LOCK NUT

- hex. (5/16" - 48 hex.)

1шт.

5

A41407

WASHER

- ball

1шт.

6

A41401

SEAT

- spring

2шт.

7

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injeciton (Supplier's No. 19745 color code red)(Replaces A58694)

6шт.

Whenever Nozzle Is Removed From Head, The Seal Ref. 11 Or 25 & Washer Ref. 10 Or 24 Must Be Replaced Before Nozzle Is Installed Back In Head

1шт.

A138322R

REMAN-INJECT NOZZLE

1170 (1/70-12/71) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

17

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

19

A42424

LOCK NUT

- lock, pressure adjusting (5/16" -48 hex.)

1шт.

20

A43601

SPRING

- pressure adjusting (brown stripe)

1шт.

21

A41401

SEAT

- spring

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
