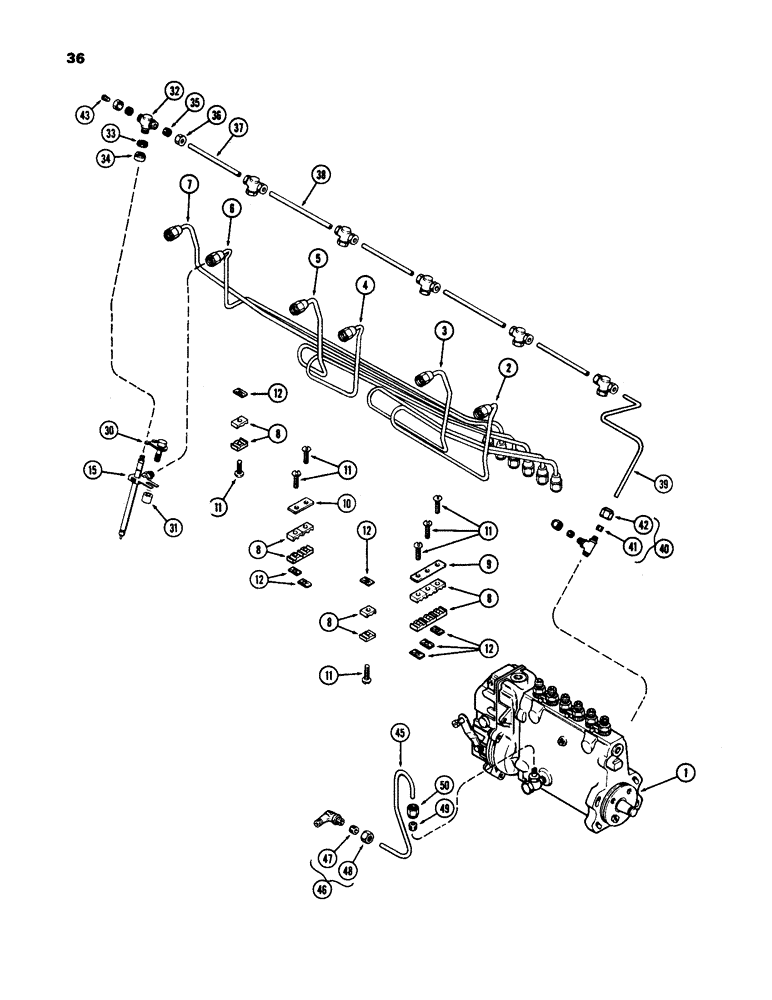

Запчасти Case IH 1170 (036) - FUEL INJECTION SYSTEM, (451B)DIESEL ENGINE (03) - FUEL SYSTEM

1

A62331

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (w/filter & hand primer) (1st used eng. ser. no. 2323001)

1шт.

1

A61250

PUMP ASSY. - fuel injection (See Figure 40) (w/out filter or hand primer) (used prior to eng. ser. no. 2323001)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY. - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY. - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

BRACKER - injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1 " N.C. rd. hd.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, Tinnerman

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - fuel injection (Order from Figure 37A)

6шт.

30

A58695

CLAMP

ASSY. - nozzle

6шт.

31

A58696

SPACER

- nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

GRINNET - cap

6шт.

34

A58961

NUT

- cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

- leak-off check ( in injection pump), Includes: Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.

45

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube, Includes: Ref. 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
