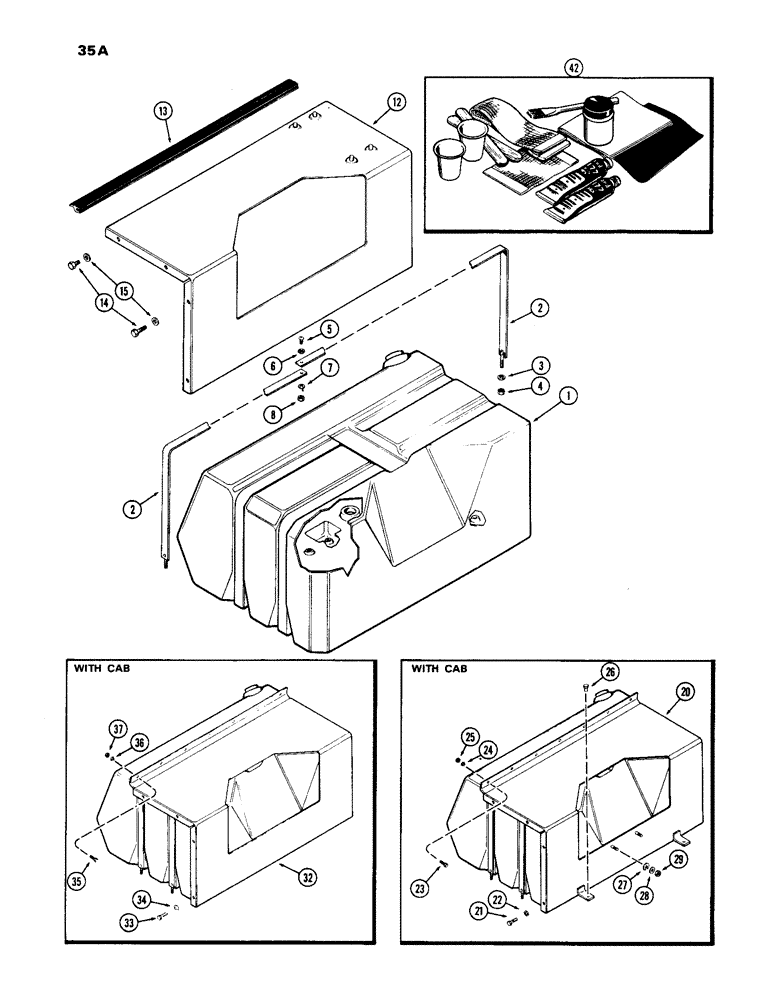

Запчасти Case IH 1170 (035A) - FUEL TANK SUPPORTS AND COVERS, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel

1шт.

2

A62055

STRAP

- fuel tank

4шт.

3

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

4

25-006

NUT - 3/8" N.C. hex.

4шт.

5

75-49

SCREW - 1/4 x 9/16" N.C. rd. hd.

2шт.

6

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

12

A59270

COVER - fuel tank (used w/out cab)

1шт.

13

A64866

GUARD

MOLDING - cover (Replaces A59498)(use adhesive 345-22)

1шт.

14

113-269

BOLT

- 3/8 x 7/8" N.C. hex.

8шт.

15

195-125

WASHER

- 7/16 x 1 x 3/32"

8шт.

20

A62681

COVER

- fuel tank (used w/cab) (1st used trac. ser. no. 8675001)

1шт.

21

113-273

BOLT

- 3/8 x 1-1/2" N.C. hex.

8шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 3/8" N.C. hex.

7шт.

24

92-5

LOCK WASHER,5/16"

7шт.

25

9635082

NUT,5/16" - 18, Gr 5

7шт.

26

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

27

A62687

SHIM,.11" Thk

Cover .11" Thk

1шт.

28

195-81

WASHER

-7/16 x 7/8 x 3/32"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

32

A60865

COVER - fuel tank ( used w/ cab) (used prior to trac. ser. no. 8675001)

1шт.

33

113-273

BOLT

WASHER - lock, 3/8"

8шт.

35

113-145

BOLT - 5/16 X 3/4" N.C. hex

3шт.

36

192-41

WASHER - LOCK, 5/16"

3шт.

37

129-300

NUT - 5/16" N.C. HEX

3шт.

42

A42782

KIT

- nylon fuel tank repair (Order A44265 & 44266)

1шт.

A44265

KIT

- nylon fuel tank repair (less adhesive)

1шт.

A44266

KIT

ADHESIVE - repair kit ( 1 bottle)

1шт.
