(034) - FUEL TANK AND LINES, (451B) DIESEL ENGINE

Запчасти Case IH 1170 (034) - FUEL TANK AND LINES, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

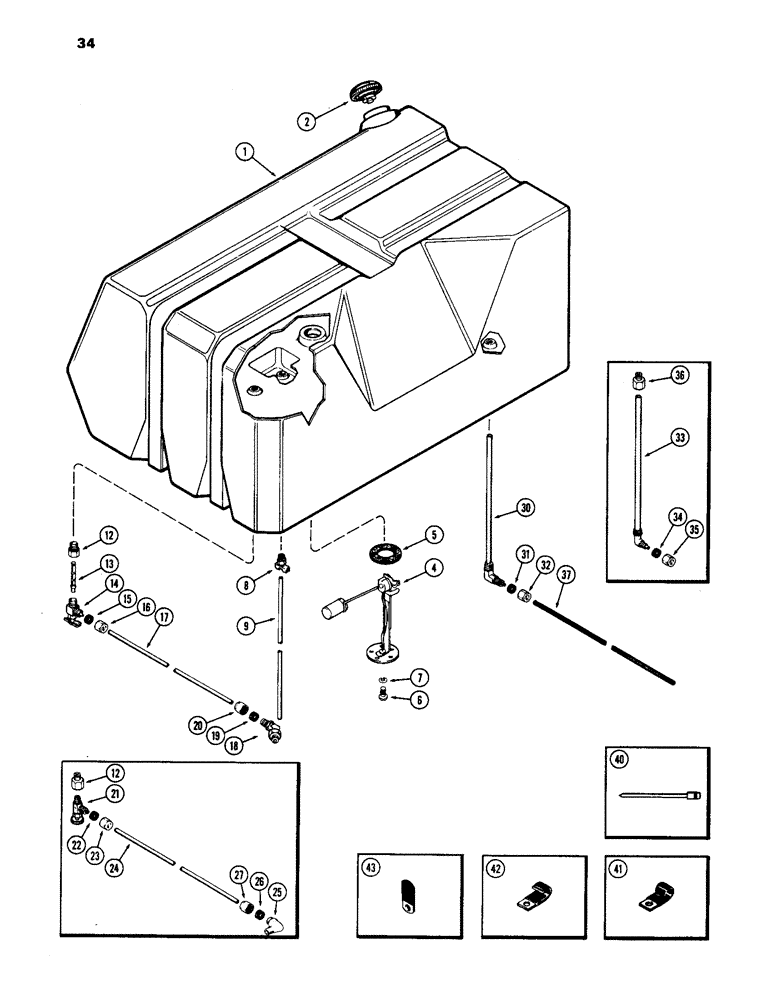

Схема запчастей Case IH 1170 - (034) - FUEL TANK AND LINES, (451B) DIESEL ENGINE (03) - FUEL SYSTEM
24
27
32
13
7
25
15
21
33
18
9
43
6
26
5
14
41
22
1
31
19
16
17
36
12
37
40
2
20
8
30
34
42
23
35
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A59490

FUEL TANK

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

2

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd. mach.

5шт.

7

A65892

WASHER

- lock, 3/16"

5шт.

8

217-107

VALVE

- drain cock

1шт.

9

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain, Nylon 0.25" ID x 15.00", SAE SC716 CS

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- shut-off valve

1шт.

13

A62353

FILTER

- fuel (1st used trac. ser. no. 8675001)

1шт.

14

A62354

VALVE

ASSY. - fuel outlet & shut-off (1st used trac. ser. no. 8675001), Includes: Ref. 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

17

A62320

TUBE

- tank outlet (1/4" I.D. x 105" nylon) (1st used trac. ser. no. 8675001)

1шт.

18

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45 deg. (to hand primer pump) (1st used trac. ser. no. 8675001), Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

21

217-278

FITTING

VALVE ASSY. - needle, fuel outlet & shut-off (used prior to trac. ser. no. 8675001), Includes: Ref. 22 and 23

1шт.

22

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

23

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

24

A60723

BASE PLATE

TUBE - tank outlet (1/4" I.D. x 79" nylon) (used prior to trac. ser. no. 8675001)

1шт.

25

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. 90 deg. (to hand primer pump) (used prior to trac. ser. no. 8675001), Includes: Ref. 26 and 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

30

A62274

FITTING

PIPE ASSY. - fuel tank return port (1st used trac. ser. no. 8675001), Includes: Ref. 31 and 32

1шт.

31

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

32

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

33

A60724

ELBOW

PIPE ASSY. - fuel tank return port (requires adapter) (used prior to trac. ser. no. 8675001), Includes: Ref. 34 and 35

1шт.

34

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

35

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

36

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

- (used w/A60724 fuel tank pipe)

1шт.

37

A60722

TUBE

- injector to return port (3/16" I.D. x 102" nylon)

1шт.

41

A57061

CLIP

- tube

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

1шт.

42

A59718

CLAMP

CLIP - tube

1шт.

43

A37179

CLIP

- tube

1шт.
