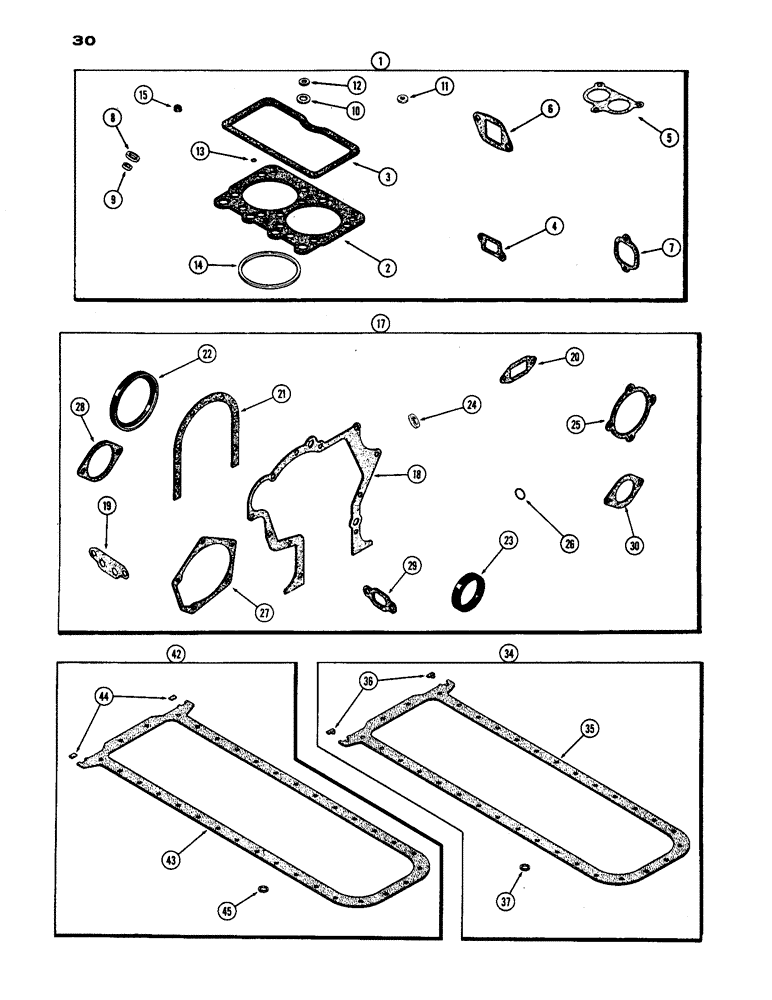

Запчасти Case IH 1170 (030) - ENGINE GASKET KITS, (451B) DIESEL ENGINE (02) - ENGINE

1

A42892

GASKET KIT

- valve grind

1шт.

For a Complete Engine Overhaull Order 1-A42892, 1-A42096, & 1-A41846 Or 1-A43006

1шт.

2

A62216

GASKET

- cylinder head

3шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

3шт.

14

A59095

GASKET

RING - cylinder head fire (Std.)

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- exhaust & intake valve

12шт.

17

A42096

GASKET

KIT - cylinder block, Includes: Ref. 18 - 30

1шт.

For a Complete Engine Overhaull Order 1-A42892, 1-A42096, & 1-A41846 Or 1-A43006

1шт.

18

A58612

GASKET

- timing gear cover

1шт.

19

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

20

A58646

GASKET

- water pump body

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A62050

OIL SEAL

- crankshaft rear

1шт.

23

A62049

OIL SEAL

- crankshaft front

1шт.

24

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

25

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

26

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - oil filter base

3шт.

27

A58615

GASKET

- fuel pump gear cover

1шт.

28

A58617

GASKET

- pump mounting cover

1шт.

29

A58670

GASKET

- oil cooler water opening cover

1шт.

30

A58680

OIL PAN GASKET SET

- water tube to pump (Not used this unit)

1шт.

34

A43006

GASKET KIT

- oil pan (1st used eng. ser. no. 2323001), Includes: Ref. 35 - 37

1шт.

For a Complete Engine Overhaull Order 1-A42892, 1-A42096, & 1-A41846 Or 1-A43006

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006)

1шт.

36

A62402

GASKET

- oil pan corners

2шт.

37

A58608

GASKET

- oil pan drain plug (49/64 x 1 x 1/16")

1шт.

37

A58933

OIL PAN GASKET SET

- oil pan drain plug (7/8 x 1-1/4 x 1/16") (note used this machine)

1шт.

42

A41846

KIT

GASKET KIT - oil pan (used prior to eng. ser. no. 2323001), Includes: Ref. 43 - 45

1шт.

For a Complete Engine Overhaull Order 1-A42892, 1-A42096, & 1-A41846 Or 1-A43006

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A41846)

1шт.

44

A33017

OIL PAN GASKET SET

- oil pan corners

2шт.

45

A58608

GASKET

- oil pan drain plug (49/64 x 1 x 1/16")

1шт.
