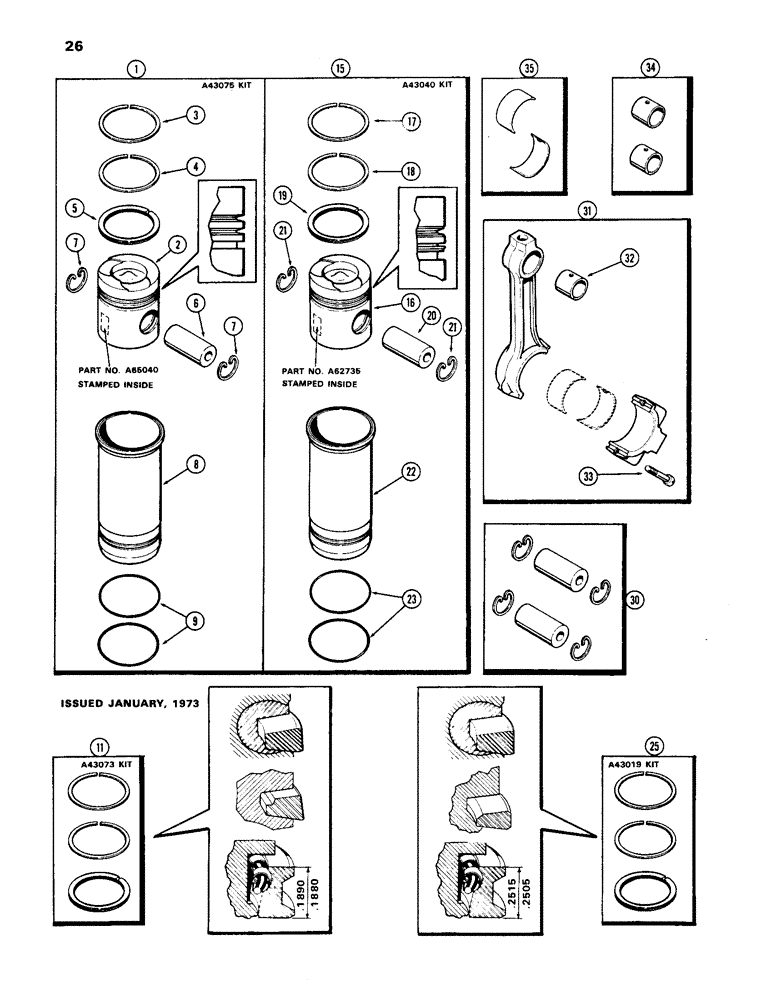

Запчасти Case IH 1170 (026) - PISTON ASSEMBLY AND CONNECTING RODS, (451B) DIESEL ENGINE (02) - ENGINE

1

A43075

SLEEVE

PISTON & SLEEVE KIT - (Set of 2) (Repl. A43040), Includes: Ref. 2 - 9

3шт.

2

A65040

PISTON

PISTON - cylinder (4-3/8" bore) (Part No. A65040 stamped on casting, inside of piston)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 30)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A148203

SLEEVE CYLINDER

SLEEVE - piston (cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - piston sleeve (4-1/2 x 4-3/4 x 1/8")

4шт.

A43074

RING, SET

RING KIT - re-ring (Set of 6) (For A65040 piston), Includes: Ref. 11

1шт.

11

A43073

RING

RING KIT - re-ring (Set of 1) (For A65040 piston)

6шт.

15

A43040

KIT

PISTON & SLEEVE KIT - (Set of 2) (Order A43075), Includes: Ref. 16 - 23

1шт.

16

A62735

PISTON

PISTON - (4-3/8" bore) Part No. A62735 stamped on casting, inside of piston)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 25)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 25)

2шт.

19

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 25)

2шт.

20

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 30)

2шт.

21

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

22

A59093

SLEEVE

SLEEVE - piston (cylinder liner)

2шт.

23

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - piston sleeve (4-1/2 x 4-3/4 x 1/8")

4шт.

A43018

RING

RING KIT - re-ring (Set of 6)(For A62735 piston), Includes: Ref. 25

1шт.

25

A43019

PISTON RING SET

RING KIT - re-ring (Set of 1)(For A62735 piston)

6шт.

30

A43095

PIN

PIN KIT - w/retaining rings (Set of 2)(Replaces A42471)

3шт.

31

A62954

ROD, CONNECTING

ROD ASSY. - connecting (1st used eng. SN 2331248)

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

1шт.

31

A61239

SPARE PART ROD ASSY. - connecting (Used prior to eng. SN 2331248), Includes: Ref. 32 and 33

6шт.

32

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 34)

1шт.

33

A62184

STEP BOLT

BOLT - connecting rod cap (Replaces A27848)

2шт.

34

A42491

BUSHING

BUSHING KIT - piston pin (Set of 2)

3шт.

35

A42493

INSERT

INSERT ASSY. - connecting rod bearing (Std.)

6шт.

35

A42478

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002")

6шт.

35

A42479

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

6шт.

35

A42480

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.020")

6шт.

35

A42481

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030")

6шт.

A148553

SHIM

.010, for bores = 4.625

1шт.

A148554

SHIM

.005, for bores = 4.625

1шт.

A148555

SHIM .002, for bores = 4.625

1шт.

A150221

SHIM

.010, for bores = 4.25 and 4.125

1шт.

A150306

SHIM

.005, for bores = 4.25 and 4.125

1шт.

A150222

SHIM

.010, for bores = 4.00 and 4.125

1шт.

A150307

SHIM KIT

.005, for bores = 4.00 and 4.125

1шт.
