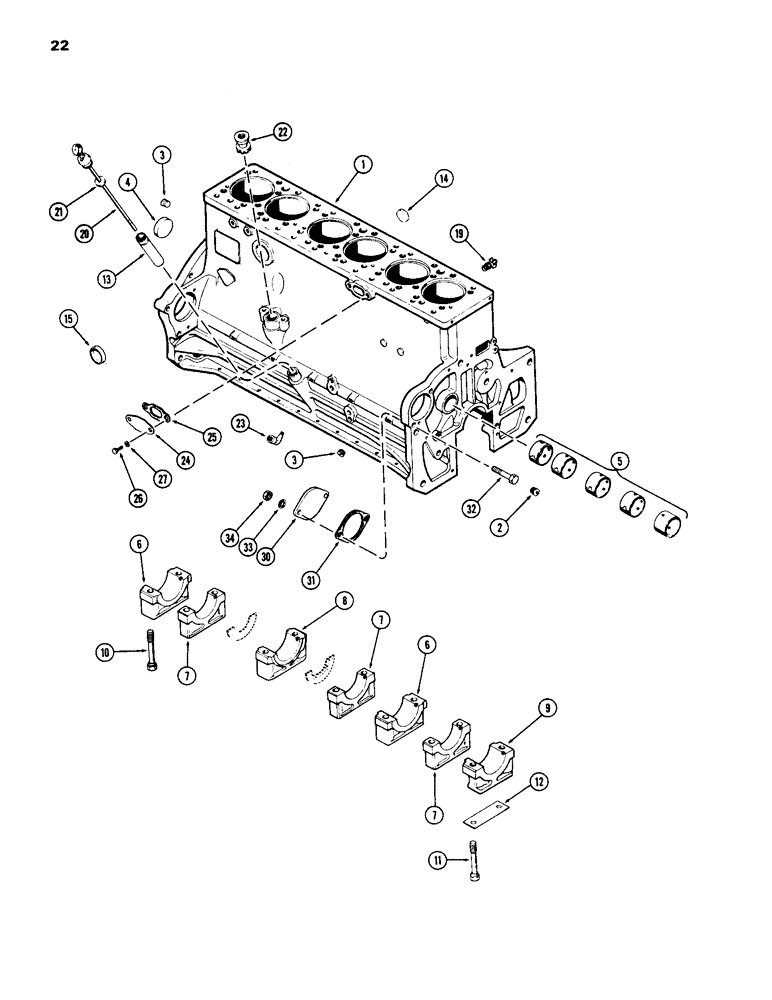

Запчасти Case IH 1170 (022) - CYLINDER BLOCK ASSEMBLY, (451B) DIESEL ENGINE (02) - ENGINE

A42472

SKELETON ENGINE

BLOCK ASSY. - short (Casting No. A58513) (incl. pistons, conn. rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters), Includes: Ref. 1 - 34

1шт.

1

A42068

BLOCK

ASSY. - stripped (Casting #A58513), Includes: Ref. 2 - 15

1шт.

2

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

3шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/8" P.T. sltd. hdless.

6шт.

4

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

5

A23544

BUSHING

KIT - camshaft

1шт.

6

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

7

A58784

BEARING CAP

CAP - main bearing, narrow

3шт.

8

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

9

A58782

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - bearing cap, 5/8 x 4-1/2" N.C. spec.

12шт.

11

A58567

STEP BOLT

BOLT - bearing cap to oil pump

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

3шт.

15

A58569

PLUG,Cup, 2", Stainless

- 2" cup type

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34541

DIPSTICK

- oil level, Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

22

A33610

DRIVE

ASSY. - tachometer

1шт.

23

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

1шт.

24

A58851

PLATE

COVER - water opening, oil cooler

1шт.

25

A58670

GASKET

- oil cooler water opening cover

1шт.

26

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

30

A61053

COVER

- pump mounting

1шт.

31

A58615

GASKET

- pump mounting cover

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.
