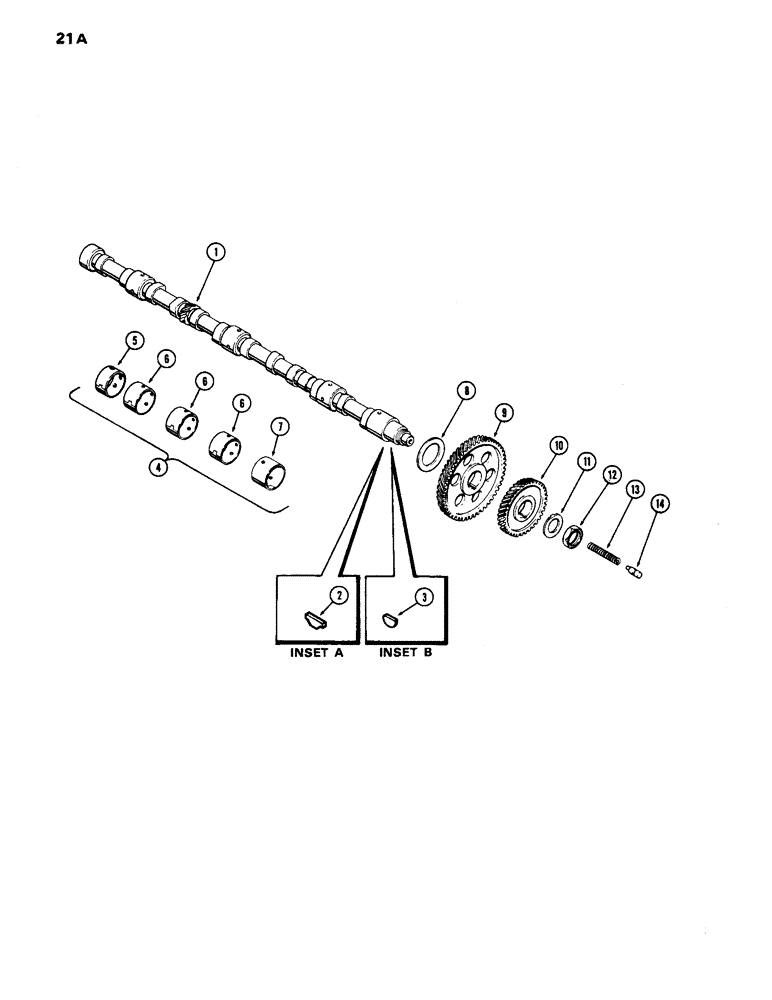

Запчасти Case IH 1170 (021A) - CAMSHAFT, (451B) DIESEL ENGINE (02) - ENGINE

1

A62734

CAMSHAFT

- (takes hi-pro key) (1st used eng. ser. no. 2323279)

1шт.

1

A58591

CAMSHAFT

- (takes Woodruff key) (used prior to eng. ser. no. 2323279) (order 1-A62734 camshaft & 1-126-227 Hi-Pro key)

1шт.

2

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - hi-pro (see inset A)(used w/A62734 camshaft) (1st used eng. ser. no. 2323279)

1шт.

3

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

(See Inset B) Used w/A58591 camshaft (Used prior to eng. S/N 2323279) #C, 5/16" x 1 1/8"

1шт.

4

A23544

BUSHING

KIT - camshaft (Set of 4), Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

8

A21017

WASHER

- camshaft thrust

1шт.

9

A58592

GEAR

- camshaft

1шт.

10

A58593

GEAR

- idler drive

1шт.

11

A58594

LOCK WASHER

- tab, camshaft nut lock

1шт.

12

A58595

NUT

- camshaft

1шт.

13

A27853

SPRING

- plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
