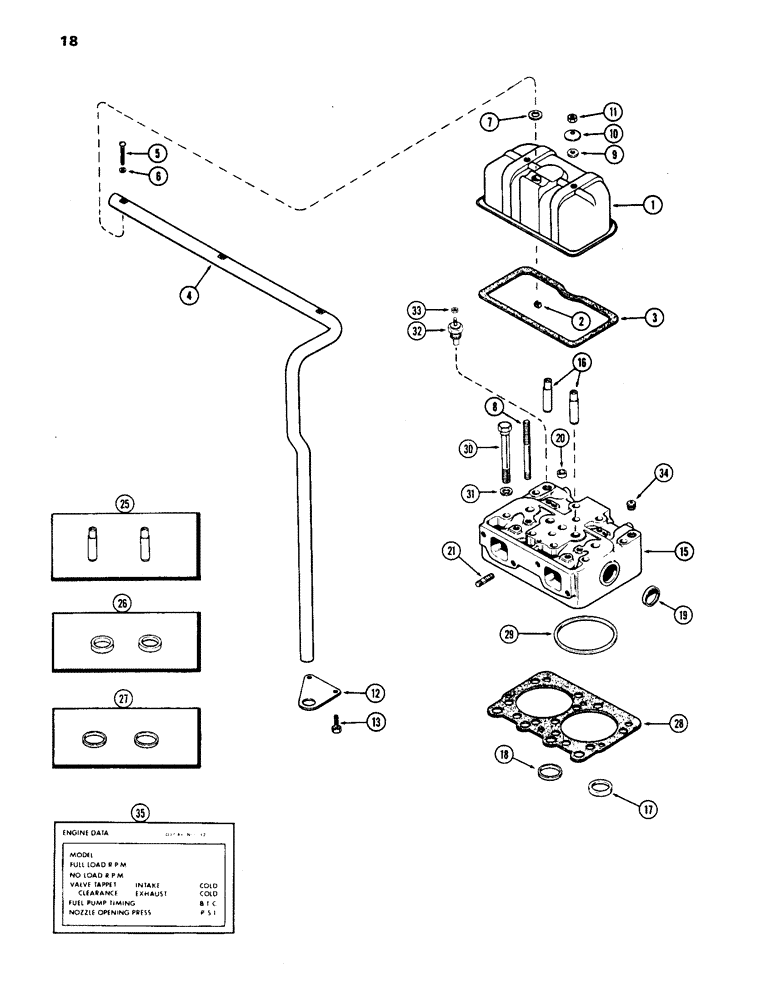

Запчасти Case IH 1170 (018) - CYLINDER HEAD AND COVER, (451B) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A59053

TUBE

- breather

1шт.

5

75-440

SCREW

- mach., 1/4 x 2-1/2" rd. hd.

3шт.

6

A34133

GASKET

- breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A60885

STUD

- rocker arm bracket & cylinder head cover

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

12

A59054

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. Sems

2шт.

15

A61251

HEAD

ASSY. - cylinder, Includes: Ref. 16 - 20

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 27)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type

2шт.

20

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

21

A59077

STUD

- manifold mounting - 3/8 X 1-13/16"

24шт.

25

A41781

GUIDE

KIT - intake & exhaust valves (Set of 2)

6шт.

26

A57485

INSERT

KIT - exhaust valve (Set of 2)

3шт.

27

A42761

INSERT

KIT - intake valve (Set of 2)

3шт.

28

A62216

GASKET

- cylinder head

3шт.

29

A59095

GASKET

RING - fire (Standard)(See A42595)

6шт.

29

A42595

GASKET

RING - fire, oversize (5/64" thick w/blue stripe)

6шт.

30

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex. (Replaces A58630)

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

32

A61787

TRANSMITTER

UNIT - temperature sending (in rear head)

1шт.

33

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. keps

1шт.

34

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

5шт.

35

321-1528

DECAL

- engine data

1шт.
