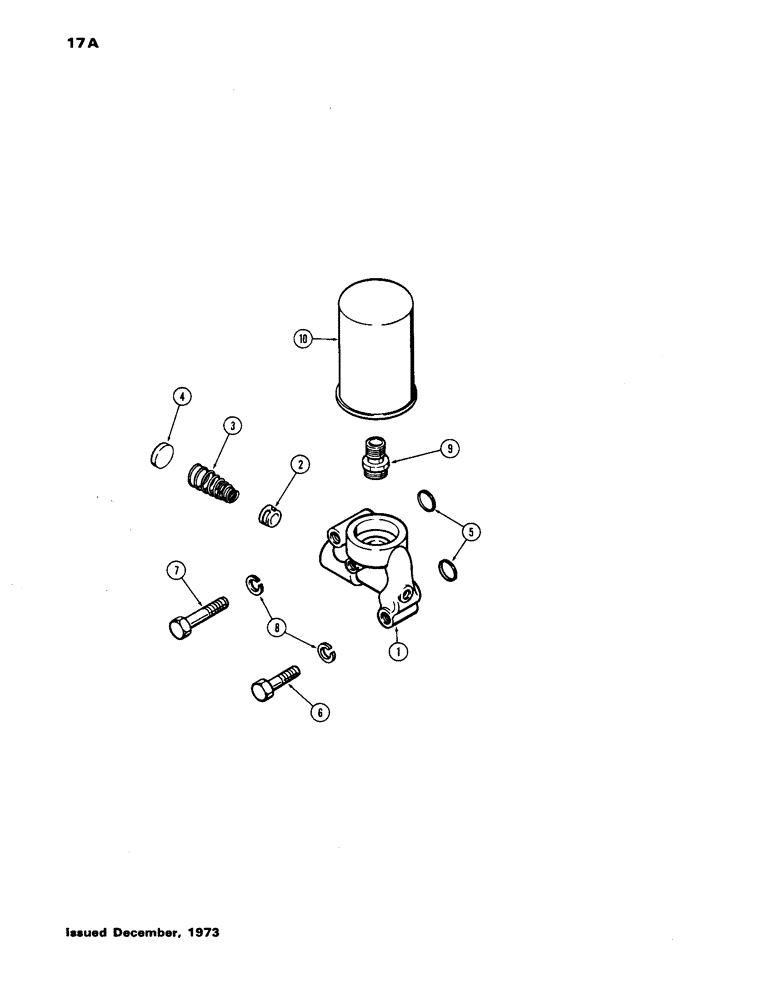

Запчасти Case IH 1170 (017A) - OIL FILTER, (451B) DIESEL ENGINE (02) - ENGINE

1

A58830

BASE

ASSY. - oil filter, Includes: Ref. 2 - 4

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-17/64" cup

1шт.

5

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - filter base to block (15/16 x 1-1/8 x 3/32")

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

1шт.

7

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A59109

ADAPTER

-, Serial Range: element-base

1шт.

10

A62423

FILTER, ENGINE OIL

ELEMENT - filter, oil

1шт.
