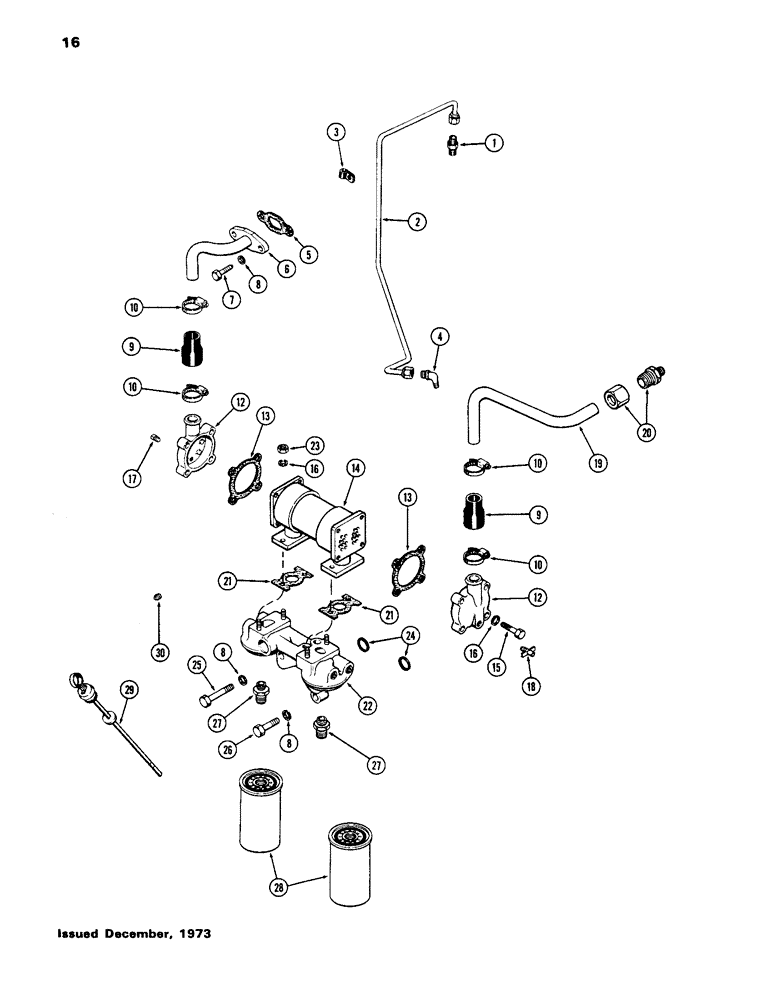

Запчасти Case IH 1170 (016) - OIL FILTER AND HEAT EXCHANGER, (451B) DIESEL ENGINE (02) - ENGINE

A65842

COOLER

KIT - oil filter & heat exchanger, Includes: Ref. 1 - 30

1шт.

1

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube x 1/4" P.T.

1шт.

2

A64375

TUBE

- turbocharger oil supply

1шт.

3

49845

CLAMP

CLIP - oil tube

1шт.

4

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" P.T.

1шт.

5

A58670

GASKET

-, Serial Range: tube-block

1шт.

6

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

A64353

HOSE

- reducer, Serial Range: bonnet-tube

2шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

4шт.

12

A64349

HOOD

BONNET - exchanger end

2шт.

13

A63920

GASKET

-, Serial Range: bonnet-exchanger

2шт.

14

A63917

COOLER

EXCHANGER - oil heat

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

16

92-6

LOCK WASHER,3/8"

12шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

1шт.

18

217-107

VALVE

DRAIN COCK - exchanger

1шт.

19

A64352

TUBE

- water, Serial Range: pump-exchanger

1шт.

20

222-2020

FITTING

CONNECTOR - 1" tube x 3/4" P.T.

1шт.

21

A65359

GASKET

-, Serial Range: exchanger-base

2шт.

22

A64107

BASE

- oil filter

1шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block

2шт.

25

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex.

1шт.

26

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

27

A64454

ADAPTER

- oil, Serial Range: filter-base

2шт.

28

A64453

ENGINE OIL FILTER

FILTER - engine oil

2шт.

29

A65051

DIPSTICK

- engine oil level

1шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

1шт.
