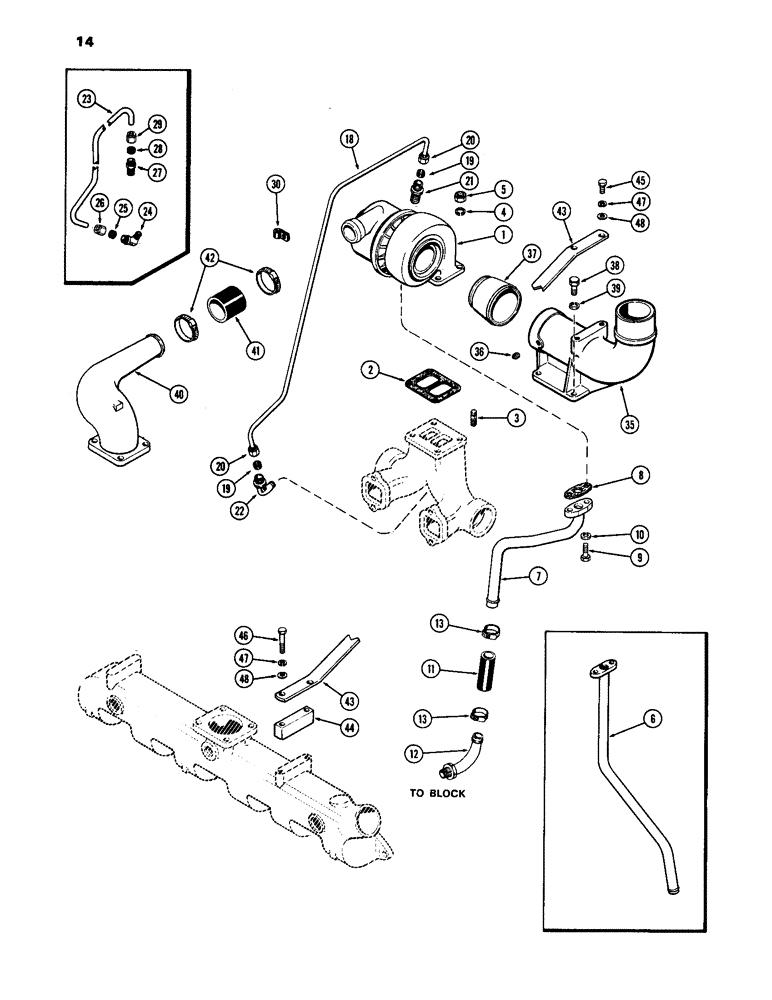

Запчасти Case IH 1170 (014) - TURBO-CHARGER, (451B) DIESEL ENGINE (02) - ENGINE

1

A43361

REMAN-TURBOCHARGER

TURBO-CHARGER - original equipment

1шт.

1

A43360

TURBOCHARGER

TURBO-CHARGER - do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used Garret Turbo-charger which you wish to return for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbo-charger-manifold

1шт.

3

A29356

STUD

- 3/8" N.C. x 1-1/2"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez pruf

4шт.

6

A61666

TUBE

ASSY. - oil drain (Order A62518)

1шт.

7

A62518

TUBE

ASSY. - oil drain

1шт.

8

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

A58893

HOSE

- drain to fitting (1-1/4" O.D. x 3-1/2" lg.)

1шт.

12

A58897

FITTING

- drain

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

18

A62478

TUBE

ASSY. - oil supply (flared ends) (1st used eng. ser. no. 2323754), Includes: Ref. 19 and 20

1шт.

19

222-154

SLEEVE,3/8" Tube

- "Viton", for 3/8" Tube

2шт.

20

222-114

NUT,5/8"-24

NUT - for 3/8" tube

2шт.

21

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (used w/A62478 tube)

1шт.

22

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- (used w/A62478 tube)

1шт.

23

A62311

TUBE

- oil supply (straight ends) (used prior to eng. ser. no. 2323754)

1шт.

24

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ASSY. - (used w/A62311 tube), Includes: Ref. 25 and 26

1шт.

25

222-104

SLEEVE,3/8" Tube

- rubber, for 3/8" Tube

1шт.

26

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

27

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - (used w/A62311 tube), Includes: Ref. 28 and 29

1шт.

28

222-104

SLEEVE,3/8" Tube

- rubber, for 3/8" Tube

1шт.

29

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

30

49845

CLAMP

CLIP - oil supply tube

1шт.

35

A61265

ELBOW

- exhaust, turbo-charger

1шт.

36

221-12

PLUG,Sq Hd, 1/4"-18

- elbow, 1/4" P.T. sq. hd.

1шт.

37

A58896

SLEEVE

CONNECTOR - exhaust elbow

1шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger

1шт.

41

A58894

HOSE

- air intake elbow

1шт.

42

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

43

A61944

BRACE

-, Serial Range: elbow-manifold

1шт.

44

A61945

SPACER

-, Serial Range: brace-maniofold

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.
