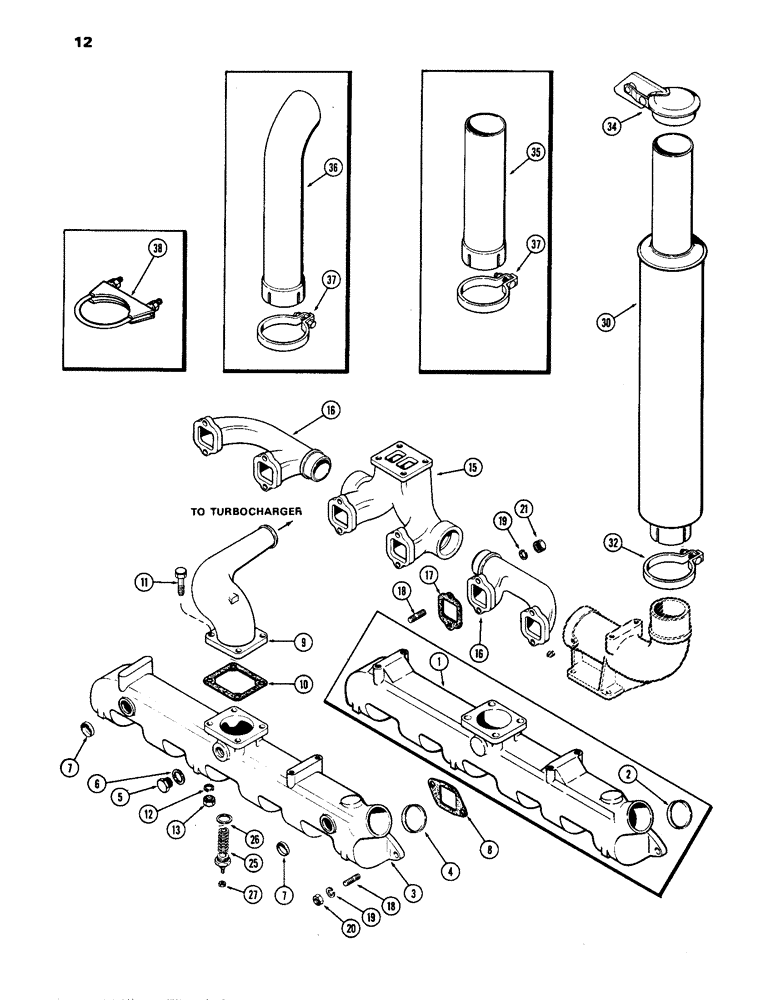

Запчасти Case IH 1170 (012) - MANIFOLD AND MUFFLER, (451B) DIESEL ENGINE (02) - ENGINE

1

A62847

TUBE

MANIFOLD ASSY. - intake (aluminum), Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

A61256

MANIFOLD

ASSY. - intake (cast iron), Includes: Ref. 4

1шт.

4

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

5

A20917

PLUG

- intake manifold (w/cast iron only)

1шт.

6

A20916

MANIFOLD GASKET

WASHER - intake manifold plug (w/cast iron only)

1шт.

7

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup (w/cast iron only)

2шт.

8

A58662

MANIFOLD GASKET

- intake manifold

6шт.

9

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger

1шт.

10

A58910

GASKET

- air intake elbow

1шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

A58906

TUBE

MANIFOLD - exhaust, center

1шт.

16

A58907

EXHAUST MANIFOLD

MANIFOLD - exhaust, ends

2шт.

17

A58895

GASKET

- exhaust manifold

6шт.

18

A59077

STUD

- intake & exhaust manifolds

24шт.

19

92-6

LOCK WASHER,3/8"

24шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold studs

12шт.

21

131-903

NUT,3/8"-16

NUT - 3/8" N.C. seezpruf., exhaust manifold studs

12шт.

25

A37775

HEATER

ASSY. - intake manifold (12 V.)

1шт.

26

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

27

129-503

NUT,1/4"-20, Brass

1шт.

30

A61636

MUFFLER

- exhaust

1шт.

30

A62816

MUFFLER - (chrome finish)(Order A64990)

1шт.

32

A62880

COLLAR CLAMP

CLAMP - muffler (Replaces A62363)

1шт.

34

A62175

CYLINDER END CAP

CAP - muffler rain

1шт.

35

A61637

EXTENSION

- muffler (w/cab or canopy)(black finish)

1шт.

36

A62850

PIPE

EXTENSION - muffler (w/cab or canopy)(black finish)

1шт.

36

A62817

EXTENSION - muffler (w/cab or canopy)(chrome finish) (Order A62850)

1шт.

37

A62818

CLAMP - (chrome finish)(Order A62878)

1шт.

38

A62878

CLAMP

- extension ("U" bolt type)

1шт.
