Запчасти Case IH 1170 (011E) - PRE-CLEANER AND PRE-SCREENER ATTACHMENT, USED WITH TRACTORS WITHOUT CAB (02) - ENGINE

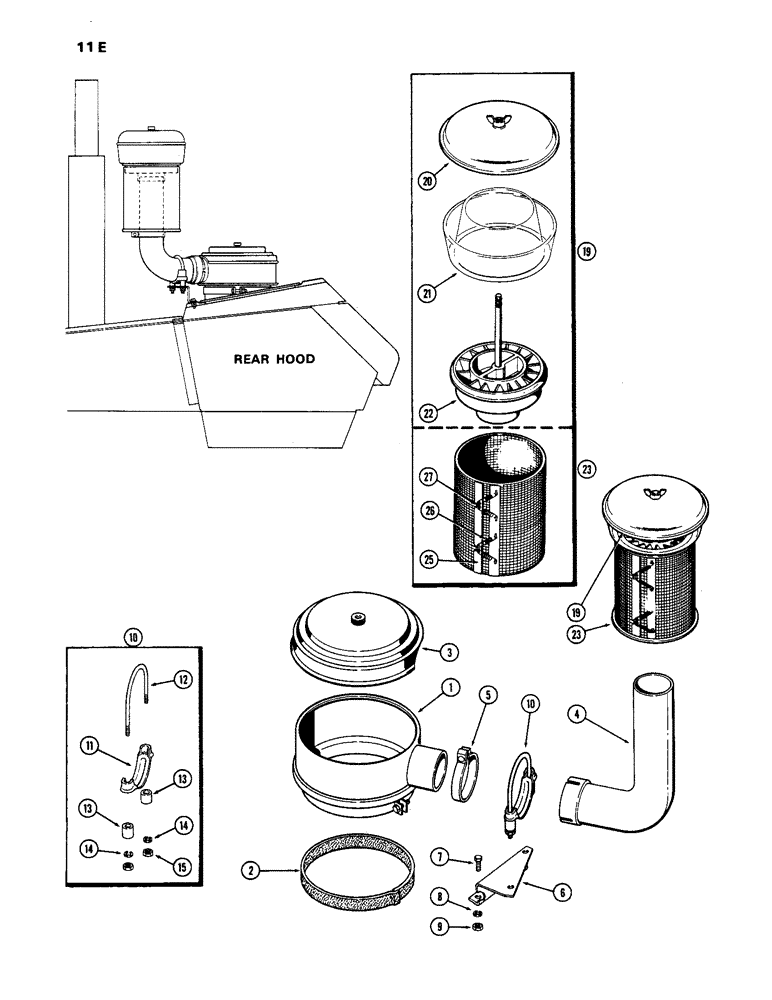

Схема запчастей Case IH 1170 - (011E) - PRE-CLEANER AND PRE-SCREENER ATTACHMENT, USED WITH TRACTORS WITHOUT CAB (02) - ENGINE
8
19
11
6
10
23
4
21
20
13
22
3
2
25
14
13
27
15
26
10
12
9
19
14
5
1
23
7

Артикул

Название

Примечание

Количество

A62794

PRE-CLEANER - screener att. (Mach. Item), Includes: Ref. 1 - 27

1шт.

1

A62762

ADAPTER ASSY. - air cleaner, Includes: Ref. 2

1шт.

2

A44132

GASKET

- cover

1шт.

3

A62761

COVER

- adapter

1шт.

4

A62795

TUBE - inlet

1шт.

5

A62797

CLAMP - inlet tube

1шт.

6

A62796

SUPPORT - tube

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Support Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

10

A62865

CLAMP

ASSY. - tube retaining, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SADDLE - "U" bolt

1шт.

12

NSS

NOT SOLD SEPARAT

"U" BOLT - clamp, 3/8" N.C.

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - clamp, 13/32 x 1/2 x 1-7/64"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

19

A43486

PRECLEANER

PRE-CLEANER ASSY. - (Collector), Includes: Ref. 20 - 22

1шт.

20

A42465

COVER

ASSY.

1шт.

21

A42467

HOUSING

BOWL - collector (clear plastic)

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner

1шт.

23

A43488

PRESCREENER

PRE-SCREENER ASSY., Includes: Ref. 25 - 27

1шт.

25

A42286

SCREEN

ASSY., Includes: Ref. 26 and 27

1шт.

26

A22780

SPRING

- screen clamping

4шт.

27

A22781

CLIP

CLAMP - spring & screen anchor

2шт.

Выбрано товаров: 24
