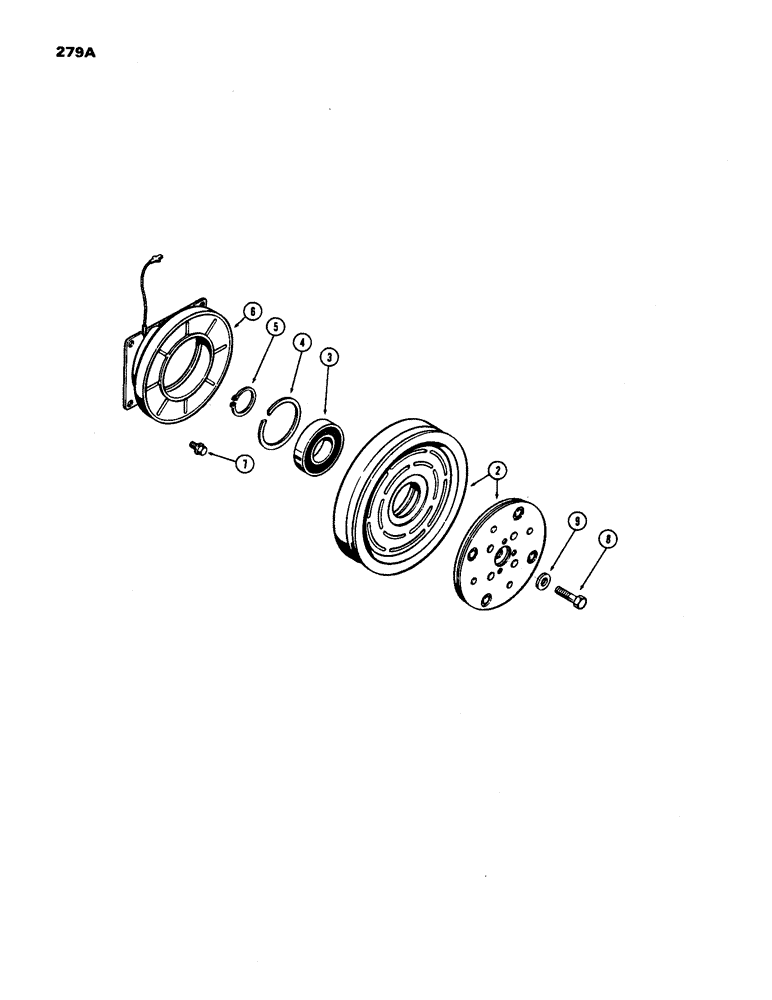

Запчасти Case IH 1170 (279A) - COMPRESSOR CLUTCH, 1ST USED TRAC. SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS

A64956

CLUTCH

ASSY. - (Warner Elec. #I-4505-17)(Replaces A62959), Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

3

C14295

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

BEARING - pulley rotor

1шт.

4

A42942

RING - snap, outer

1шт.

5

A8218

SNAP RING,#118, Ext

Ring, Snap, , inner #118, Ext

1шт.

6

A42941

COIL

FIELD ASSY. - pulley

1шт.

7

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

8

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex.

1шт.

9

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A61149

CLUTCH

ASSY. - (Warner Elec. #I-1405-14), used prior to tractor s/n 8686964, Includes: Ref. 14 - 21

1шт.

14

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor, used prior to tractor s/n 8686964

1шт.

15

C14295

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

BEARING - pulley rotor, used prior to tractor s/n 8686964

1шт.

16

A42942

RING - snap, outer, used prior to tractor s/n 8686964

1шт.

17

A8218

SNAP RING,#118, Ext

Ring, Snap, , inner, used prior to tractor s/n 8686964 #118, Ext

1шт.

18

A42941

COIL

FIELD ASSY. - pulley, used prior to tractor s/n 8686964

1шт.

19

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

Used prior to tractor S/N 8686964 Hex, 1/4"-20 x 3/8", G5, Full Thd

4шт.

20

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex., used prior to tractor s/n 8686964

1шт.

21

A27343

BUSHING

SPACER - clutch attaching bolt, used prior to tractor s/n 8686964

1шт.
