Запчасти Case IH 1170 (011C) - PRE-CLEANER AND PRE-SCREENER ATTACHMENT, USED WITH TRACTORS WITH CAB (02) - ENGINE

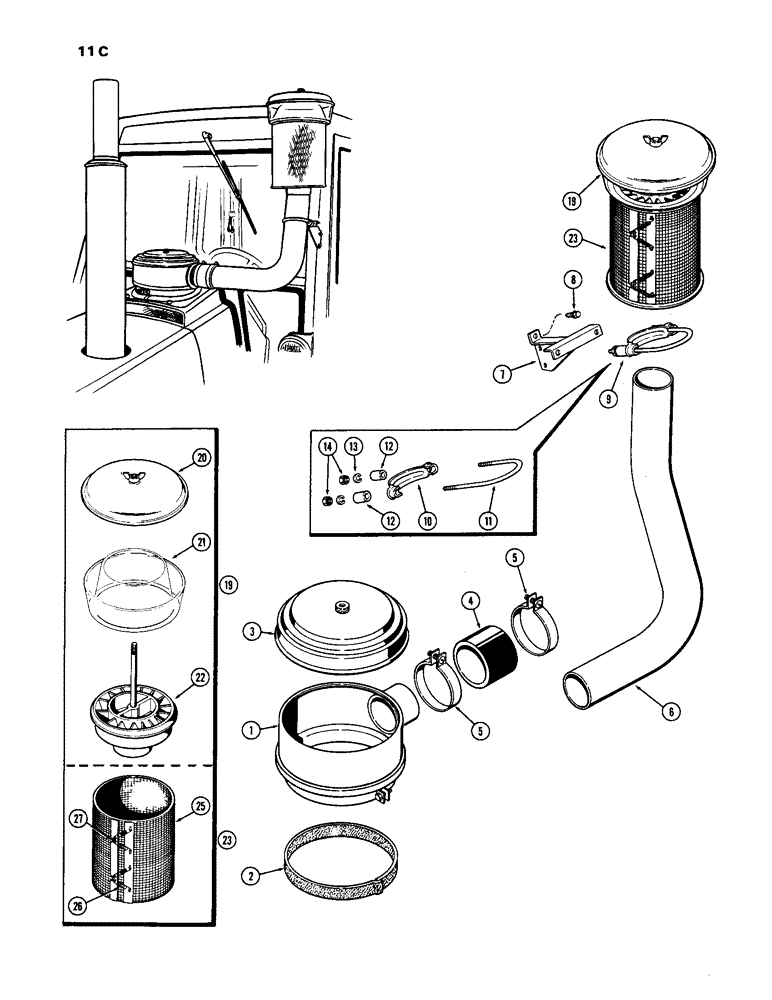

Схема запчастей Case IH 1170 - (011C) - PRE-CLEANER AND PRE-SCREENER ATTACHMENT, USED WITH TRACTORS WITH CAB (02) - ENGINE
14
10
8
6
20
7
19
4
12
3
5
12
2
25
11
13
5
23
9
23
21
1
26
27
19
22

Артикул

Название

Примечание

Количество

A62769

PRE-CLEANER - screener attachment (Mach. Item), Includes: Ref. 1 - 27

1шт.

1

A62762

ADAPTER ASSY. - air cleaner, Includes: Ref. 2

1шт.

2

A44132

GASKET

- adapter

1шт.

3

A62761

COVER

- adapter

1шт.

4

A62768

HOSE

- inlet, 3-3/4" I.D. x 3-1/2"

1шт.

5

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - inlet hose

2шт.

6

A62763

TUBE - inlet

1шт.

7

A62764

SUPPORT - tube

1шт.

8

187-1513

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tube support to cab (1/4 x 1/2" self tapping)

3шт.

9

A62865

CLAMP

ASSY., - tube retaining, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SADDLE - "U" bolt

1шт.

11

NSS

NOT SOLD SEPARAT

"U" BOLT - clamp, 3/8" N.C.

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - clamp, 13/32 x 1/2 x 1-7/64"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

19

A43486

PRECLEANER

PRE-CLEANER ASSY. - (collector), Includes: Ref. 20 - 22

1шт.

20

A42465

COVER

ASSY

1шт.

21

A42467

HOUSING

BOWL - collector (clear plastic)

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner

1шт.

23

A43488

PRESCREENER

PRE-SCREENER ASSY., Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - pre-screener

1шт.

25

A42286

SCREEN

ASSY., Includes: Ref. 26 and 27

1шт.

26

A22780

SPRING

- screen clamping

4шт.

27

A22781

CLIP

CLAMP - spring & screen anchor

2шт.

Выбрано товаров: 24
