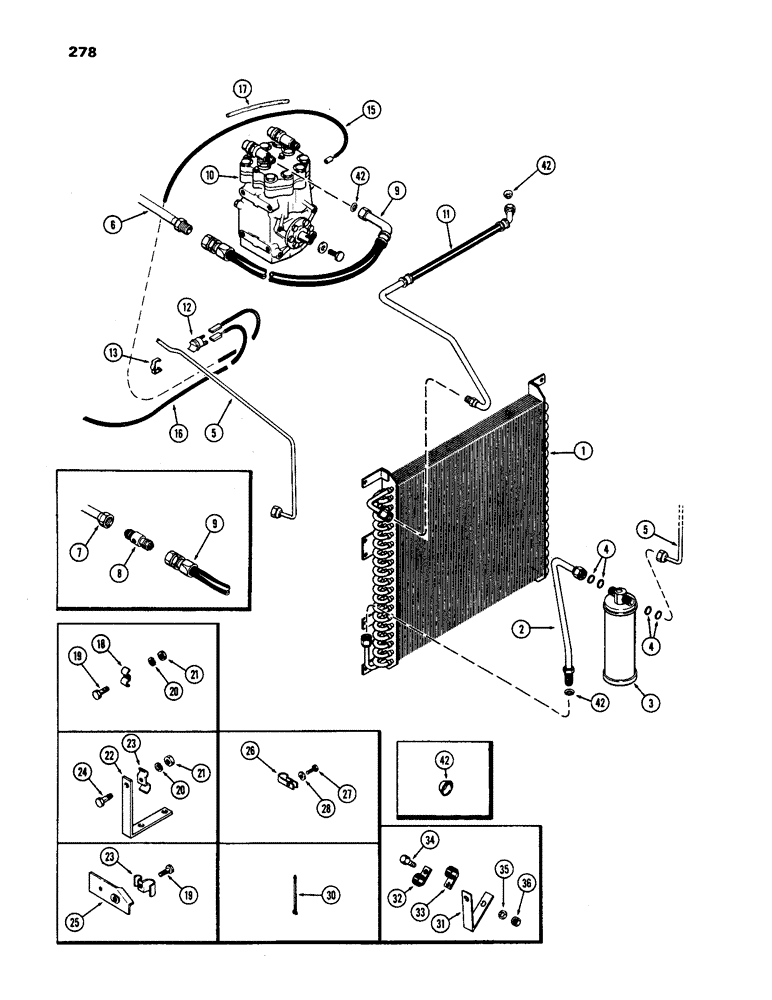

Запчасти Case IH 1170 (278) - CAB, AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61812

COIL

COIL - condenser

1шт.

2

A64579

TUBE

TUBE - condenser to receiver (replaces A61816)

1шт.

3

A61688

TANK

RECEIVER - drier

1шт.

4

A31198

SPARE PART O-RING - 5/16 x 7/16 x 1/16"

4шт.

5

A64581

TUBE

TUBE - receiver to cab (replaces A61818)

1шт.

6

A62225

TUBE

TUBE - cab to compressor, w/union (12st used trac. ser. no. 8665014)

1шт.

7

A61213

TUBE

TUBE - cab to compressor, w/out union (used prior to trac. ser. no. 8665014)

1шт.

8

A61189

SPARE PART UNION - tube to hose (used w/A61213 tube) (used prior to trac. ser. no. 8665014)

1шт.

9

A61207

HOSE

HOSE -, Serial Range: cab-compressor

1шт.

10

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh)(See Figure 280) (Order A61148)

1шт.

10

A42954

COMPRESSOR ASSY. - (York)(See Figure 282) (Order A61148)

1шт.

10

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

10

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

10

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

11

A64580

HOSE

HOSE - compressor to condenser (Replaces A61817)

1шт.

12

A61291

THERMOSTAT

THERMOSTAT - high temperature

1шт.

13

A61789

CLAMP

CLAMP - thermostat

1шт.

15

A61755

ELECTRICAL WIRE

WIRE WIRE - thermostat to compressor clutch

1шт.

16

A42931

ELECTRICAL WIRE

WIRE WIRE - thermostat to cab harness

1шт.

17

S62053

LOOM - wire

1шт.

18

A61199

CLIP

CLIP - tube

1шт.

19

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

22

A61819

SPARE PART BRACKET - air cond. tube mtg.

1шт.

23

A61704

SPARE PART CLAMP - tubes

2шт.

24

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 7/8", G5, Full Thd

2шт.

25

A64397

BRACKET

BRACKET - air cond. tube mtg. (Replaces A62254)

1шт.

26

A7922

CLIP

CLIP - clutch lead wire

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLIP -, Serial Range: wires-tubes

2шт.

31

A62206

SPARE PART BRACKET - air cond. tubes

1шт.

32

NLS

NO LONGER SERVICED

CLIP - tube, 5/8"

1шт.

33

49845

CLAMP

CLIP - tube, 3/8"

1шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

42

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

1шт.

42

222-994

GASKET,1/2 Tube, Fl, Copper

GASKET - flare, copper for 1/2" tube)

1шт.

42

222-995

SEALING WASHER,15.88mm ID

GASKET - flare, copper (for 5/8" tube)

1шт.
