Запчасти Case IH 1170 (277A) - CAB, AIR CONDITIONER, 1ST USED TRAC. SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS

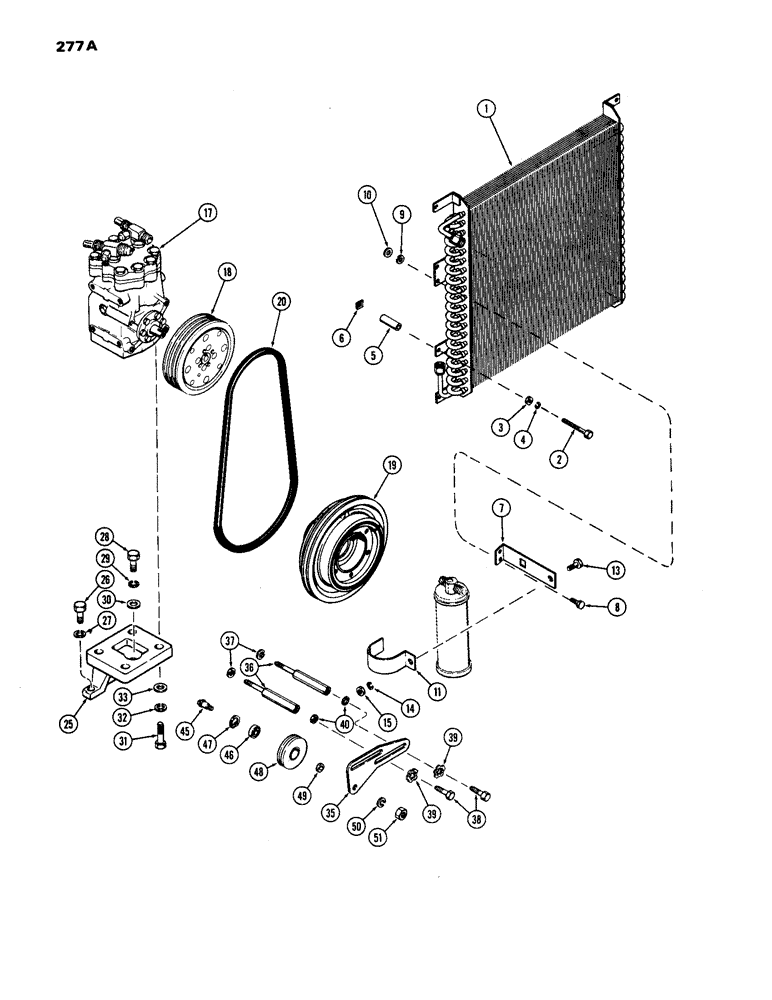

Схема запчастей Case IH 1170 - (277A) - CAB, AIR CONDITIONER, 1ST USED TRAC. SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS
45
5
9
28
14
29
8
10
13
50
25
32
11
19
18
38
27
26
51
4
39
48
49
40
47
33
30
20
6
36
35
31
1
15
7
3
2
46
37
17
39

Артикул

Название

Примечание

Количество

1

A61812

COIL

COIL - condenser

1шт.

2

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

BOLT, Hex, 1/4"-20 x 3", G5

8шт.

3

95-4

WASHER,1/4"

WASHER - plain, 5/16 x 3/4 x 1/16"

8шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

A61813

SPARE PART SPACER - coil mounting

8шт.

6

131-611

NUT,Ret, 1/4"-20

NUT - 1/4" N.C. (Tinnerman)

8шт.

7

A62131

SPARE PART BRACKET - receiver

1шт.

8

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

11

A61193

CLAMP

CLAMP - receiver

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

1шт.

17

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh)(See Figure 280) (Order A61148)

1шт.

17

A42954

COMPRESSOR ASSY. - (York)(See Figure 282) (Order A61148)

1шт.

17

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

17

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

17

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

18

REF

INSTRUCTION

CLUTCH ASSY. - compressor (See Figure 279A)

1шт.

19

A64106

CRANKSHAFT

PULLEY - drive (on crankshaft)

1шт.

20

A62962

V-BELT,0.50" W x 72.80" L

Compressor Drive

1шт.

25

A64147

BRACKET

SPARE PART BRACKET - compressor mounting

1шт.

26

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

28

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

29

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

1шт.

30

195-2065

WASHER,33/64" x 7/8" x .049"

WASHER - plain, 7/8 x 33/64 x 18 ga.

1шт.

31

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

4шт.

32

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

33

95-6

WASHER,3/8"

WASHER - plain, 1/2 x 1 x 5/64"

1шт.

35

A62969

LARGE PLATE

PLATE, LARGE PLATE - idler adjusting

1шт.

36

A62970

POST

POST - idler plate mounting

2шт.

To Install Remove Two 13 - 640 Bolts From Timing Gear Cover

1шт.

37

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

38

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

39

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int.-ext. Shakeproof

2шт.

40

195-25

WASHER,3/8"

WASHER - plain, 13/32 x 13/16 x 1/16"

1шт.

45

A62967

PIN

PIN - idler pulley

1шт.

46

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley

1шт.

47

A62966

SNAP RING,1.02", Int, #102

Ring, Snap, , pulley brg 1.02", Int, #102

1шт.

48

A62964

PROTECTOR

PULLEY - idler

1шт.

49

A62968

SPACER

SPACER - idler pulley

1шт.

50

192-110

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

51

25-145

JAM NUT,Jam, 5/16"-18, G5

NUT - jam, 5/16" N.C. hex.

1шт.

Выбрано товаров: 45
