Запчасти Case IH 1170 (276) - CAB, AIR CONDITIONER, USED PRIOR TO TRAC. SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS

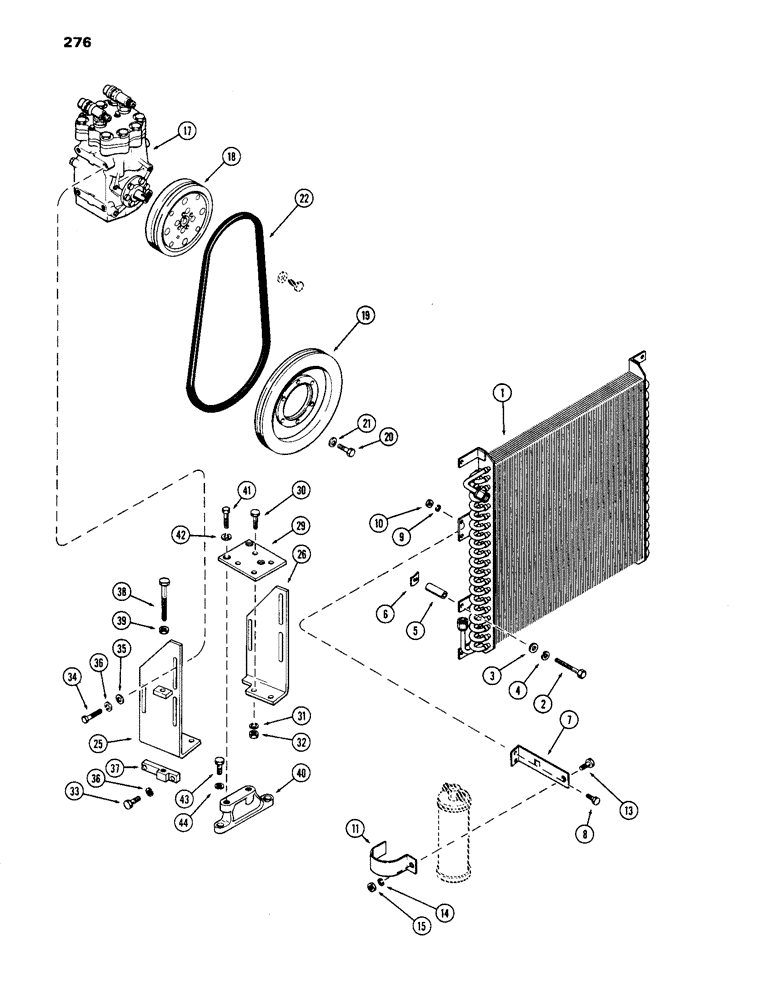

Схема запчастей Case IH 1170 - (276) - CAB, AIR CONDITIONER, USED PRIOR TO TRAC. SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS
15
38
43
41
44
21
42
11
4
37
3
31
6
26
25
34
14
33
5
35
36
32
9
8
2
36
19
7
13
17
39
10
40
29
1
30
22
20
18

Артикул

Название

Примечание

Количество

1

A61812

COIL

COIL - condenser

1шт.

2

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

BOLT, Hex, 1/4"-20 x 3", G5

4шт.

3

95-4

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

A61813

SPARE PART SPACER - coil mounting

4шт.

6

131-611

NUT,Ret, 1/4"-20

NUT - 1/4" N.C. Tinnerman

4шт.

7

A62131

SPARE PART BRACKET - receiver

1шт.

8

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

11

A61193

CLAMP

CLAMP - receiver

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

1шт.

17

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh)(See Figure 280) (Order A61148)

1шт.

17

A42954

COMPRESSOR ASSY. - (York)(See Figure 282) (Order A61148)

1шт.

17

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

17

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

18

REF

INSTRUCTION

CLUTCH - compressor (See Figure 279A)

1шт.

19

A61157

SPARE PART PULLEY - drive (on crankshaft)

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Includes: Ref. 21 Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

22

A61158

BELT,72.83" L

Compressor Drive

1шт.

25

A61744

SPARE PART BRACKET - compressor mtg., R.H.

1шт.

26

A61745

SPARE PART BRACKET - compressor mtg., L.H.

1шт.

29

A61743

SPARE PART PLATE - compressor mtg. bracket adjusting

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

4шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

4шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

35

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64"

2шт.

36

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

37

A61153

SPARE PART BLOCK - adjusting, compressor

2шт.

38

A61154

SPARE PART BOLT - adjusting, 3/8 x 4-1/4" N.C. hex.

2шт.

39

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" N.C. hex., jam

2шт.

40

A61155

BRACKET

SUPPORT - compressor mounting bracket

1шт.

41

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

BOLT, Hex, 7/16"-14 x 1", G5, Full Thd

3шт.

42

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

3шт.

43

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

44

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

Выбрано товаров: 41
