Запчасти Case IH 1170 (270) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER, USED PRIOR TO TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

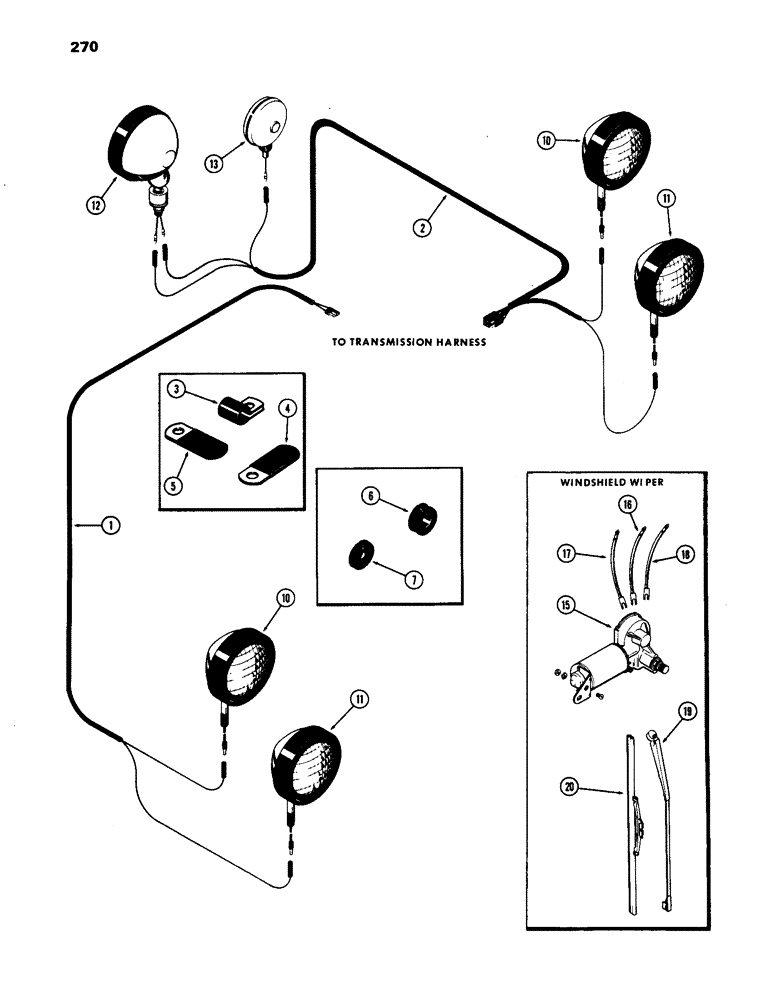

Схема запчастей Case IH 1170 - (270) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER, USED PRIOR TO TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS
15
13
2
1
11
6
19
10
7
18
16
5
12
4
20
11
10
17
3

Артикул

Название

Примечание

Количество

1

A59708

HARNESS

- fender wire, R.H.

1шт.

2

A61146

HARNESS

- fender wire, L.H.

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame

2шт.

10

A59701

LAMP

- front head driving (See Figure 62)

2шт.

11

A59723

LAMP

- front cultivator (See Figure 63A)

2шт.

12

A59703

LAMP

- rear flood & tail (See Figure 64)

1шт.

13

A34853

LAMP

- flasher (See Figure 60)

1шт.

A42682

MOTOR ASSY. - windshield wiper, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

17

A42694

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

18

A42695

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

19

A42579

ARM

- windshield wiper

1шт.

20

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

Выбрано товаров: 18
