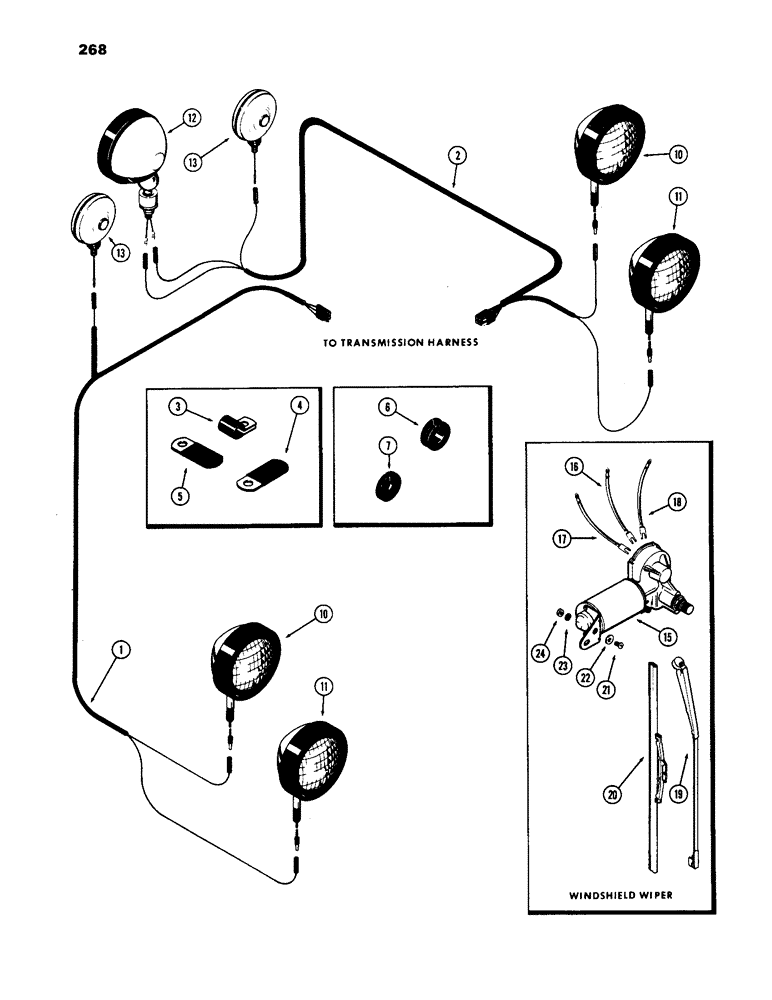

Запчасти Case IH 1170 (268) - CAB, ELECTRICAL EQUIPMENT & WIRING, FENDER, 1ST USED TRACTOR SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

1

A62414

HARNESS

- fender wire, R.H.

1шт.

2

A61146

HARNESS

- fender wire, L.H.

1шт.

3

NLS

NO LONGER SERVICED

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame

2шт.

10

A59701

LAMP

- front head driving (See Figure 62)

2шт.

11

A59723

LAMP

- front cultivator (See Figure 63A)

2шт.

12

A59703

LAMP

- rear flood & tail (See Figure 64)

1шт.

13

A34853

LAMP

- flasher (See Figure 60)

2шт.

A426925

MOTOR ASSY. - windshield wiper, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

17

A42694

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

18

A42695

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

NSS

NOT SOLD SEPARAT

ARM & BLADE ASSY. - windshield wiper, Includes: Ref. 19 and 20

1шт.

19

T41946

ARM

- windshield wiper

1шт.

20

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

21

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rd. hd. mach., windshield wiper

1шт.

22

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", windshield wiper

1шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Windshield wiper #10

1шт.

24

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex., windshield wiper

1шт.
