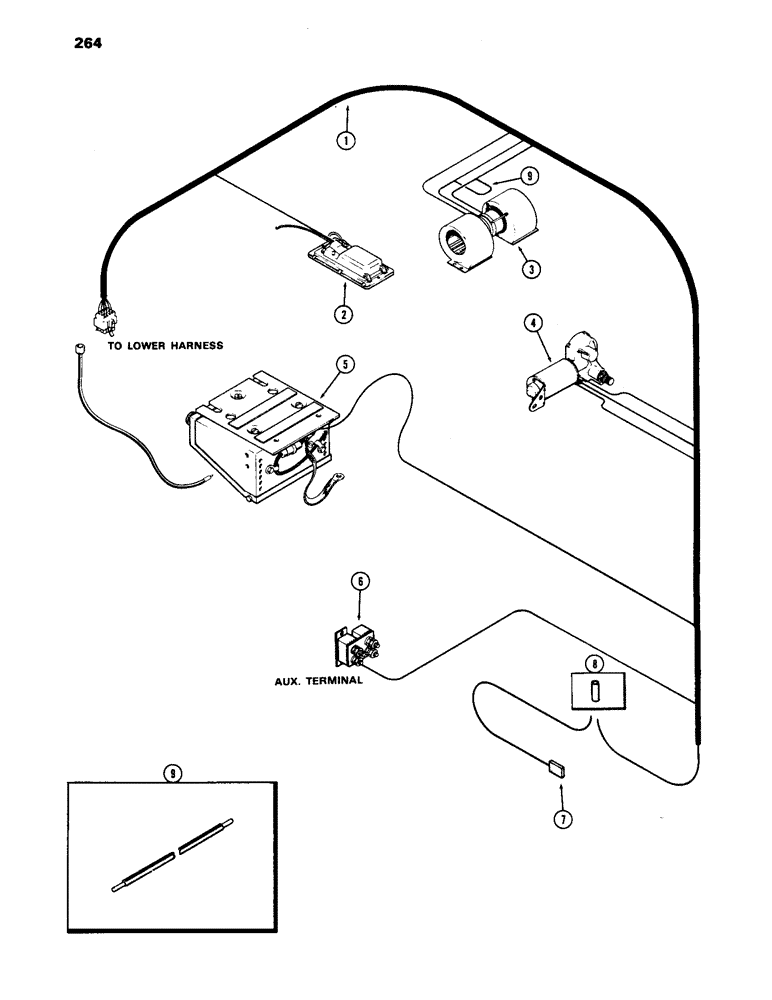

Запчасти Case IH 1170 (264) - CAB, ELECTRICAL EQUIPMENT & WIRING, PLENUM, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F63281

HARNESS

ASSY. - plenum wire

1шт.

2

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air (See Figure 272)

1шт.

4

A42692

MOTOR

ASSY. - windshield wiper (See Figures 268 and 270)

1шт.

5

A62456

RADIO

KIT - (See Figure 274)

1шт.

6

A59704

BREAKER

- circuit, auxiliary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE - harness to air cond. thermostat (See Figure 278)

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR - wire, solderless

4шт.

9

A42652

ELECTRICAL WIRE

WIRE - resistor, bloser speed adjust

1шт.

Wire Is Color Coded White , Orange & Purple And Is Connected Between The White & Brown 16" Harness Wire

1шт.
