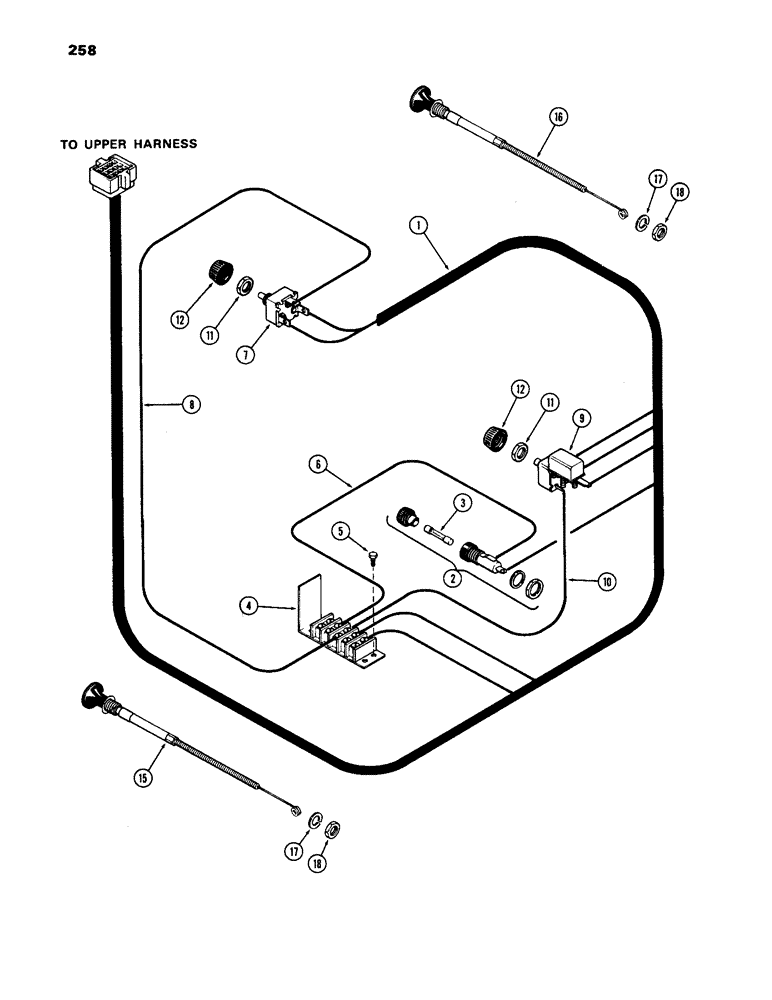

Запчасти Case IH 1170 (258) - CAB, INSTRUMENT PANEL, CONTROLS AND WIRING, WITHOUT AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42583

HARNESS ASSY. - instrument panel wire

1шт.

2

A8006

NOZZLE HOLDER

HOLDER - panel fuse

1шт.

3

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

4

A42511

BLOCK

- wiring, terminal

1шт.

5

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - #8 x 5/8" sltd. pan hd.

2шт.

6

A42563

WIRE - panel, red

1шт.

7

A42566

SWITCH

- blower

1шт.

8

A42565

ELECTRICAL WIRE

WIRE - panel, yellow

1шт.

9

A42660

SWITCH

- wiper motor

1шт.

10

A42564

WIRE - panel, green

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex., jam

2шт.

12

A42578

KNOB

- switch

2шт.

15

A42577

CONTROL

CABLE - defroster control

1шт.

16

A42614

CABLE

- heater control, Includes: Ref. 17 and 18

1шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

18

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C., half hex.

1шт.
