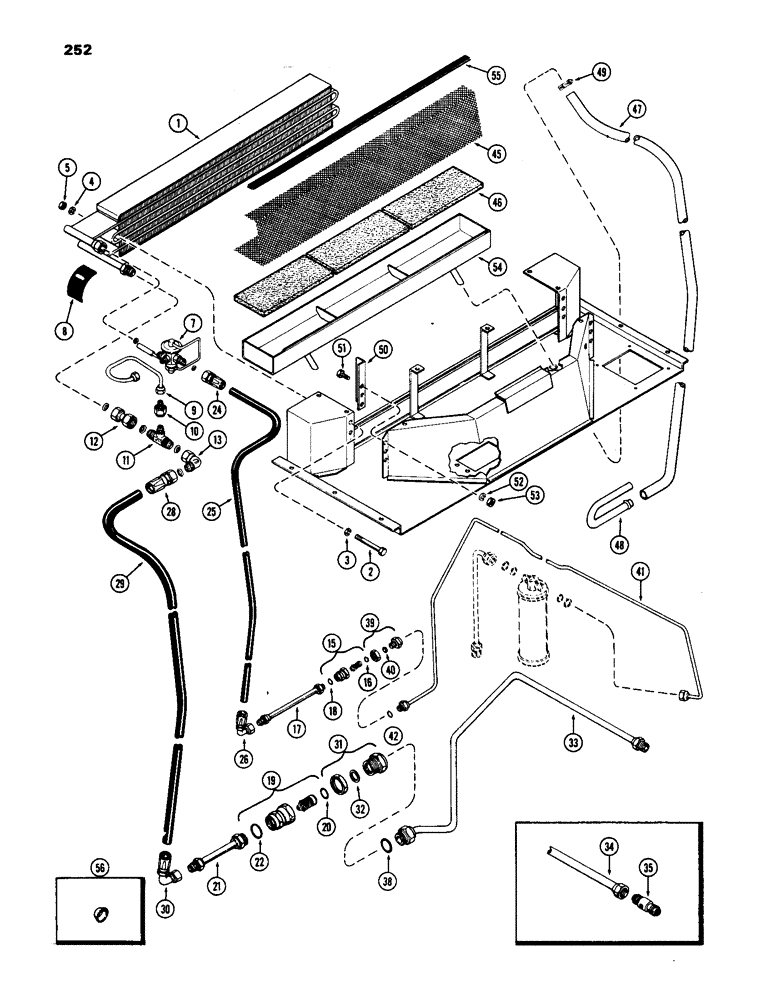

Запчасти Case IH 1170 (252) - CAB, PLENUM, WITH AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42627

CORE - air conditioner evaporation

1шт.

2

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

3

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

5

9635082

NUT,5/16" - 18, Gr 5

6шт.

7

A42625

LOCK VALVE

VALVE - expansion

1шт.

8

A42902

SEALING STRIP

INSULATION - valve, 30 foot roll (10' req. per tractor)

1шт.

9

A42633

TUBE - equalizer

1шт.

10

A42632

REDUCER

- line

1шт.

11

A42631

TEE - union

1шт.

12

A42630

UNION

- swivel

1шт.

13

222-1925

ELBOW - swivel

1шт.

15

A42663

COUPLING,1/2" - 20 NPT

COUPLING - cab half, Includes: Ref. 16

1шт.

16

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O" RING - for 3/8" tube

1шт.

17

A42670

TUBE - connector, 3/8"

1шт.

18

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 X 1/2 X 1/16"

1шт.

19

A42664

COUPLING, BREAK AWAY

COUPLING - cab half, Includes: Ref. 20

1шт.

20

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - for 5/8" tube

1шт.

21

A42669

TUBE - connector, 5/8"

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - 1-3/64 x 1-3/16 x 1/16"

1шт.

24

A42651

TUBE NUT

ADAPTER - hose (for 3/8" tube)

1шт.

25

A42634

A/C HOSE,0.312" ID x 71.00"

0.312" ID x 71.00"

1шт.

26

A42650

ELBOW

- hose (for 3/8" tube)

1шт.

28

A42649

ADAPTER

- hose (for 5/8" tube)

1шт.

29

A42647

A/C HOSE,0.50" ID x 73.00"

0.50" ID x 73.00"

1шт.

30

A42648

ELBOW

- hose (for 5/8" tube)

1шт.

31

A61194

COUPLING, BREAK AWAY

COUPLING - self sealing, Includes: Ref. 32

1шт.

32

A42668

GASKET

- coupling

1шт.

33

A62225

TUBE

- cab to compressor, w/union (See Figure 278) (1st used trac. ser. no. 8665014)

1шт.

34

A61213

TUBE

- cab to compressor, w/out union (See Figure 278) (used prior to trac. ser. no. 8665014)

1шт.

35

A61189

UNION - compressor tube to hose (used w/A61213 tube) (used prior to trac. ser. no. 8665014)

1шт.

38

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - 1-3/64 x 1-3/16 x 1/16"

1шт.

39

A61196

COUPLING, BREAK AWAY

COUPLING - self sealing

1шт.

40

A42667

GASKET

- coupling

1шт.

41

A61818

TUBE

-, Serial Range: receiver-cab

1шт.

42

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 x 1/2 x 1/16"

1шт.

45

A42904

SCREEN - evaporator

1шт.

46

A42903

PAD - foam core spacer

3шт.

47

A42698

HOSE

- drip (1/2 x 5/8 x 50 foot roll)

1шт.

48

A42699

TUBE - drip hose

2шт.

49

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

50

A42628

FILLER - plenum, R.H., w/air cond.

1шт.

50

A42629

FILLER - plenum, L.H., w/air cond.

1шт.

51

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

53

9635082

NUT,5/16" - 18, Gr 5

6шт.

54

A42901

PAN - cab condensate

1шт.

55

A42905

FOAM

- core top

1шт.

56

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

56

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube)

1шт.

56

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube)

1шт.
