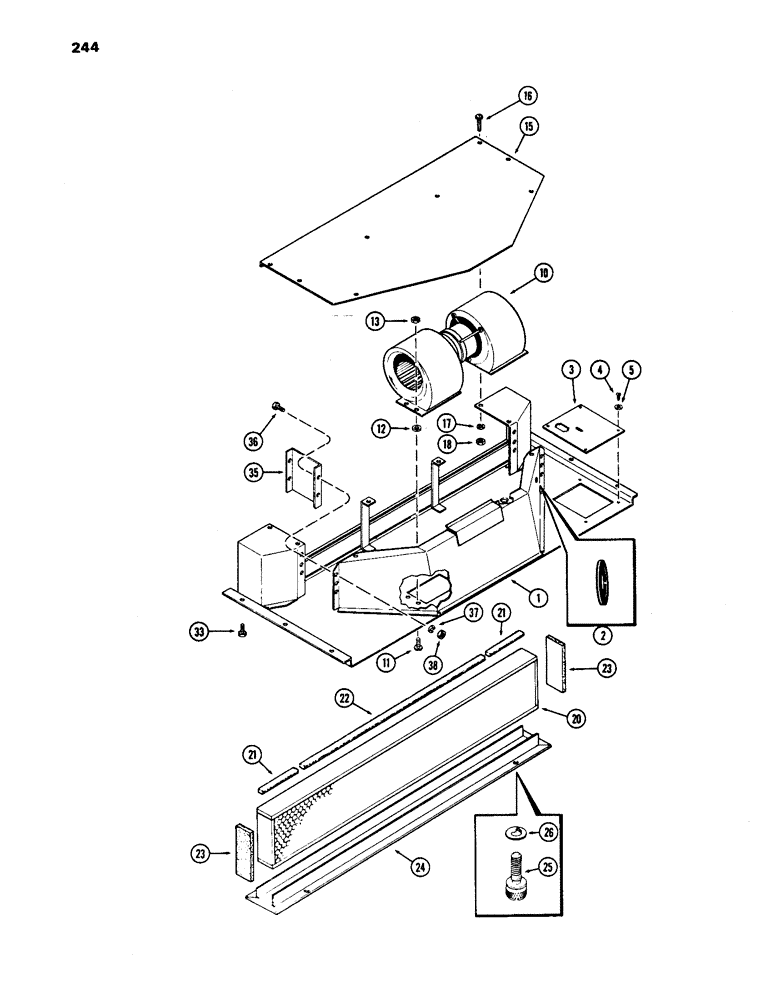

Запчасти Case IH 1170 (244) - CAB, PLENUM, WITHOUT HEATER OR AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42673

AIR TUBE

PLENUM - cab

1шт.

2

A42502

GROMMET

1шт.

3

A42542

PANEL - plenum access

1шт.

4

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - #8 x 5/8" pan hd., sltd.

4шт.

5

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

10

NSS

NOT SOLD SEPARAT

BLOWER - cab (See Figure 272)

1шт.

11

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. sltd., truss hd.

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A42672

COVER - plenum

1шт.

16

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. sltd., truss hd.

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

NLS

NO LONGER SERVICED

- air

1шт.

21

NSS

NOT SOLD SEPARAT

MOLDING - cab (Order A42905)

2шт.

22

NSS

NOT SOLD SEPARAT

MOLDING - cab (Order A42905)

1шт.

A42905

FOAM

MOLDING - cab, 1/8 x 1/2 x 50 foot roll

1шт.

23

A42909

MOLDING - cab, 6"

2шт.

24

A42655

DOOR - filter

1шт.

25

A42656

SCREW ASSY. - door, Includes: Ref. 26

4шт.

26

A61045

RETAINER

WASHER - retainer

4шт.

33

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. rd. hd., mach.

6шт.

35

A42532

FILLER - plenum, R.H. & L.H., w/o heater & air cond.

2шт.

36

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

38

9635082

NUT,5/16" - 18, Gr 5

6шт.
