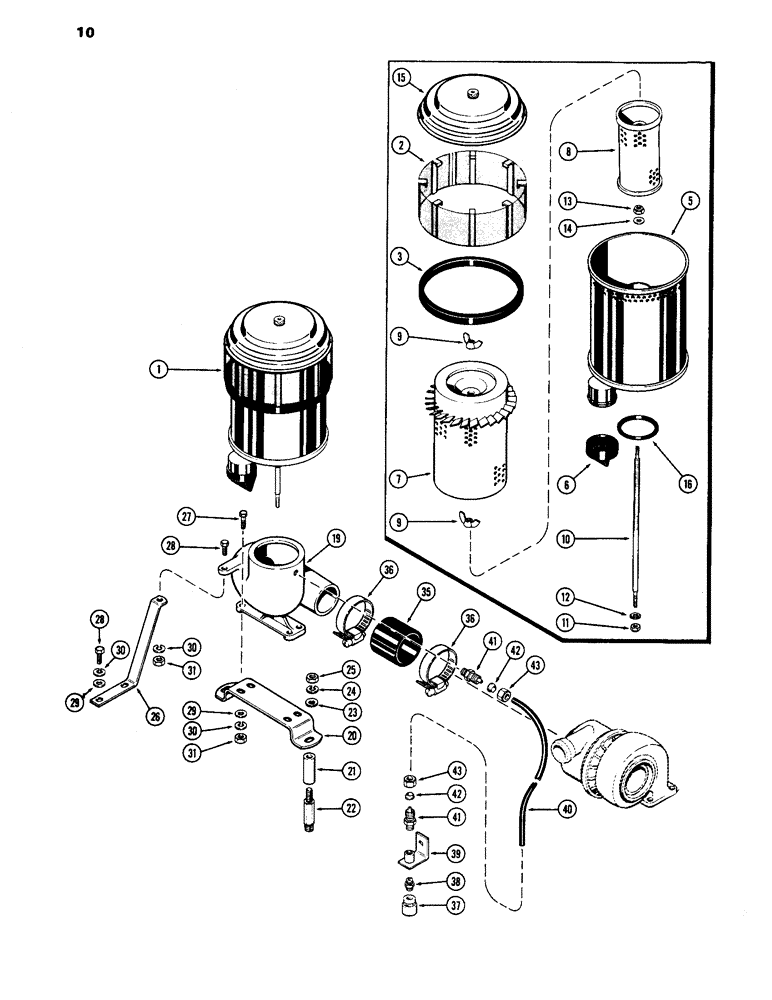

Запчасти Case IH 1170 (010) - AIR CLEANER, (451B) DIESEL ENGINE, USED PRIOR TO TRAC. SERIAL NUMBER 8686295 (02) - ENGINE

1

A62807

CLEANER

ASSY. - w/screen, Includes: Ref. 2 - 16

1шт.

A62789

SCREEN ATT. - air cleaner, Includes: Ref. 2 and 3

1шт.

2

A62788

SCREEN

- air cleaner

1шт.

3

A62808

GASKET

- screen support (rubber)

1шт.

A62255

CLEANER ASSY. - w/out screen, Includes: Ref. 5 - 16

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

6

L30414

VALVE

VACUATOR - valve

1шт.

7

A43264

ELEMENT

- primary

1шт.

8

A43265

ELEMENT

- safety

1шт.

9

F91761

WING NUT

WINGNUT - element to post, w/gasket

2шт.

10

A43266

POST

- air cleaner mounting

1шт.

11

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex., lock

1шт.

12

A43267

SEAL

- (5/16 x 7/8 x 3/32" rubber & steel)

1шт.

13

131-81

LOCK NUT,7/16"-20, GB

NUT - 7/16" N.F. hex., lock

1шт.

14

195-105

WASHER,7/16"

- (1/2 x 1-1/4 x 5/64" steel)

1шт.

15

A43263

- air cleaner

1шт.

16

A43268

SEALING RING

SEAL - body

1шт.

19

A61626

ELBOW - air cleaner support

1шт.

20

A61628

BRACKET - air cleaner mounting

1шт.

21

A61629

SPACER - mounting bracket (2-3/4" high)

2шт.

22

A61630

JACKSCREW - air cleaner bracket

2шт.

23

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 5/64"

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

26

A61627

BRACKET - air cleaner support

1шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

28

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex.

4шт.

29

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

30

92-6

LOCK WASHER,3/8"

7шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

5шт.

35

A61631

HOSE

- air intake tube (3" I.D. x 3-1/4" lg.)

1шт.

36

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

2шт.

37

A62574

INDICATOR

- air restriction (Replaces A59568)

1шт.

38

D36264

FITTING

- safety (1/8" x 1/8" P.T.)

1шт.

39

A61940

BRACKET

ASSY. - air restriction indicator

1шт.

40

A61938

TUBE - air cleaner

1шт.

41

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

CONNECTOR ASSY. - air cleaner tube, Includes: Ref. 42 and 43

2шт.

42

222-5185

SLEEVE,1/4" Tube

- nylon, 1/4" Tube

1шт.

43

222-5180

TUBE NUT,7/16"-24

for 1/4" tube (nylon sleeve) 7/16"-24

1шт.
