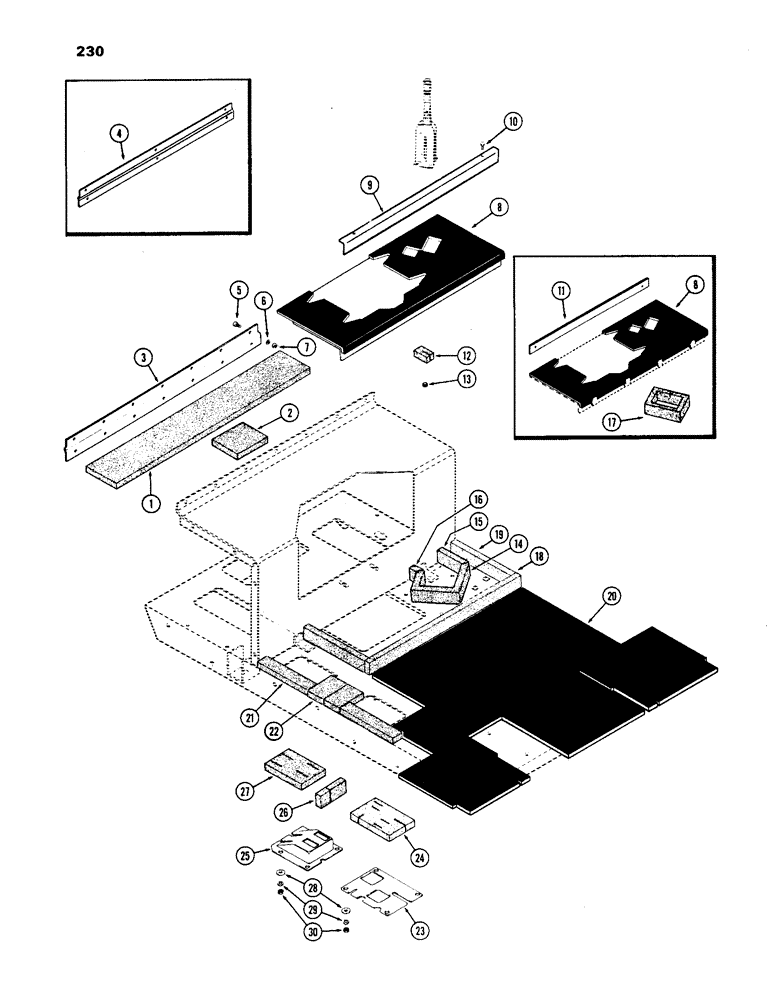

Запчасти Case IH 1170 (230) - CAB, INSULATION, PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

- fuel tank sealing

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

2

A62594

FOAM

- fuel tank, top groove

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

3

A62688

PLATE

- cab to fuel tank cover (1st used tractor ser. #8675001)

1шт.

4

A60867

PLATE

- cab to fuel tank cover (Order A62688) (used prior to tractor Ser. #8675001)

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

7

9635082

NUT,5/16" - 18, Gr 5

14шт.

8

A60821

MAT - floor, rear

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

9

A62461

FLOOR

ANGLE - floor mat retaining (Replaces A60822) (1st used tractor ser. #8675001)

1шт.

10

187-1080

SCREW,Hex Wash Hd, 1/4" x 1/2"

- 1/4 x 3/4" sltd. self-drill & tap

2шт.

11

A60822

RETAINER - floormats (Order A62461) (used proir to tractor ser. #8675001)

1шт.

12

A60819

FOAM

- sealing, hand brake

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

13

A60808

GROMMET - hand brake wire

1шт.

14

A62674

FOAM

- hand brake sealing (1st used tractor Ser. #8675001)

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

15

A62675

FOAM

- hand brake sealing (1st used tractor ser. #8675001)

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

16

A62676

(1st used tractor ser. #8675001)

1шт.

17

A60829

FOAM - hand brake sealing (used prior to tractor ser. #8675001)

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

18

A60828

FOAM

- seat support sealing, front

1шт.

19

A60827

FOAM

- seat support sealing, sides

2шт.

20

A60820

MAT

- floor, front

1шт.

21

A60814

FOAM

- sealing, console bottom

2шт.

To Be Attached With Adhesive 345 - 22

1шт.

22

A60815

FOAM

- sealing, console bottom

2шт.

23

A60810

COVER ASSY. - console, front opening, Includes: Ref. 24

1шт.

24

A60812

FOAM

- sealing, acoustical

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

25

A61088

COVER ASSY. - console, rear opening, Includes: Ref. 26 and 27

1шт.

26

A60807

FOAM

- sealing, cover front

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

27

A61090

FOAM

- sealing, cover top

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

8шт.
