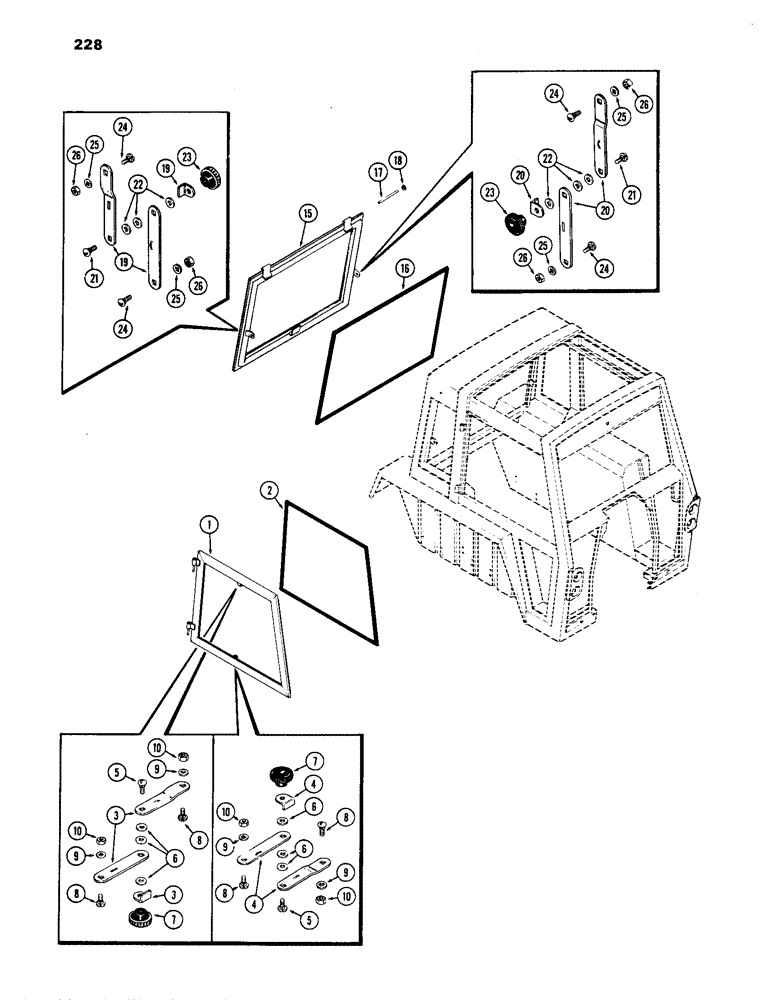

Запчасти Case IH 1170 (228) - CAB, WINDOWS, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42558

WINDOW ASSY. - R.H. , Includes: Ref. 2

1шт.

Order Glass From Page 289

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHSTRIP - window, 50 foot roll

1шт.

3

A42926

ARM

ASSY. - window upper, R.H.

2шт.

4

A42927

ARM

ASSY. - window lower, L.H., Includes: Ref. 5, 6, & 8

2шт.

5

A42923

CARRIAGE BOLT

BOLT - window adjusting

3шт.

6

F63299

WASHER

- friction

3шт.

7

A42918

KNOB

- window adjusting

1шт.

8

F63665

CLIP

- stop

1шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

8шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" lock

8шт.

15

A42556

WINDOW ASSY. - rear , Includes: Ref. 16

1шт.

Order Glass From Page 287

1шт.

16

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - window (50' roll)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- rear window hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

2шт.
