Запчасти Case IH 1170 (226) - CAB, WINDOWS, BETTENDORF (09) - CHASSIS/ATTACHMENTS

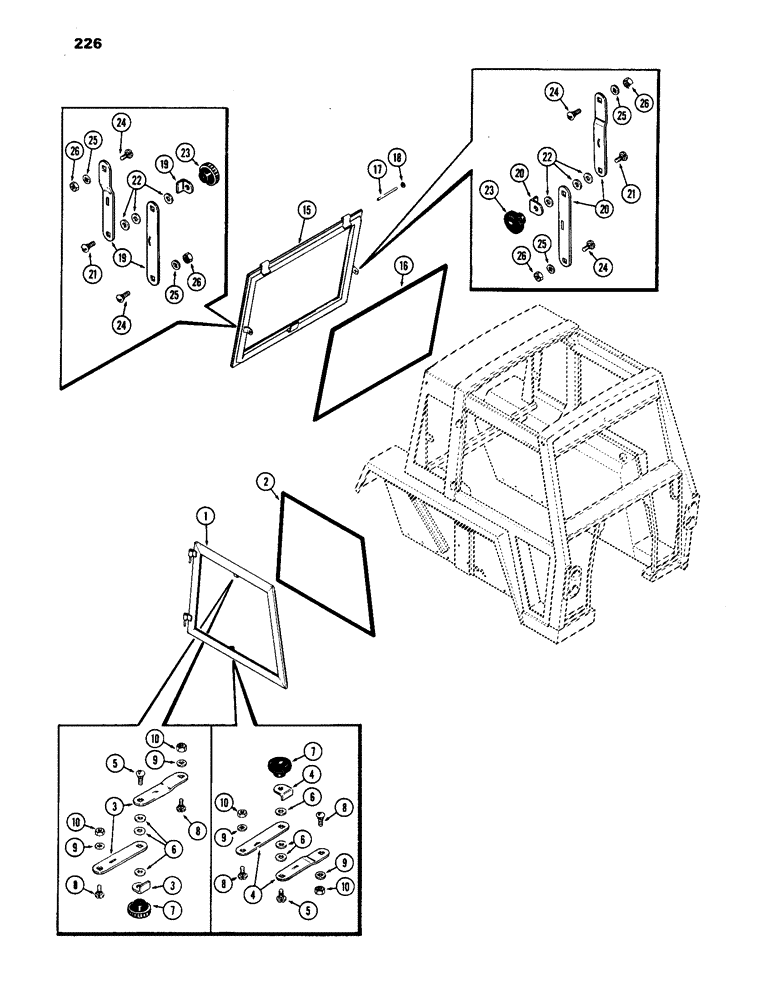

Схема запчастей Case IH 1170 - (226) - CAB, WINDOWS, BETTENDORF (09) - CHASSIS/ATTACHMENTS
20
8
9
6
15
18
26
26
24
25
1
4
5
24
7
23
24
17
10
26
6
7
4
10
8
5
23
9
2
9
9
3
25
26
20
24
19
16
10
21
22
8
8
3
19
25
6
22
25
10
21

Артикул

Название

Примечание

Количество

1

F89672

WINDOW

ASSY. - R.H.

1шт.

Order glass from Fig. 287

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 134-5/8" (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - window (50' roll)

1шт.

4

A42926

ARM

ASSY. - window, upper (Incl. ref. 5 thru 8)

1шт.

5

A42923

CARRIAGE BOLT

BOLT - 5/16 x 4/8" N.C. carr.

3шт.

6

F63299

WASHER

- friction

3шт.

7

A42918

KNOB

- regulator

2шт.

8

F63665

CLIP

- stop

1шт.

9

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

4шт.

15

F89665

WINDOW ASSY. - rear

1шт.

Order glass from Fig. 287

1шт.

16

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 150-17/64" (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - window (50' roll)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- rear window hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F63203

ARM

ASSY. - rear window, R.H. (Incl. ref. 21,22 & 23)

1шт.

20

F63280

ARM

ASSY. - rear window, L.H.

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr.

3шт.

22

F63299

WASHER

- friction

3шт.

23

F63665

CLIP

- stip

1шт.

24

A42918

KNOB

- regulator

2шт.

25

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16 " N.C. hex. lock

4шт.

Выбрано товаров: 25
