Запчасти Case IH 1170 (224) - CAB, DOOR, HINSON (09) - CHASSIS/ATTACHMENTS

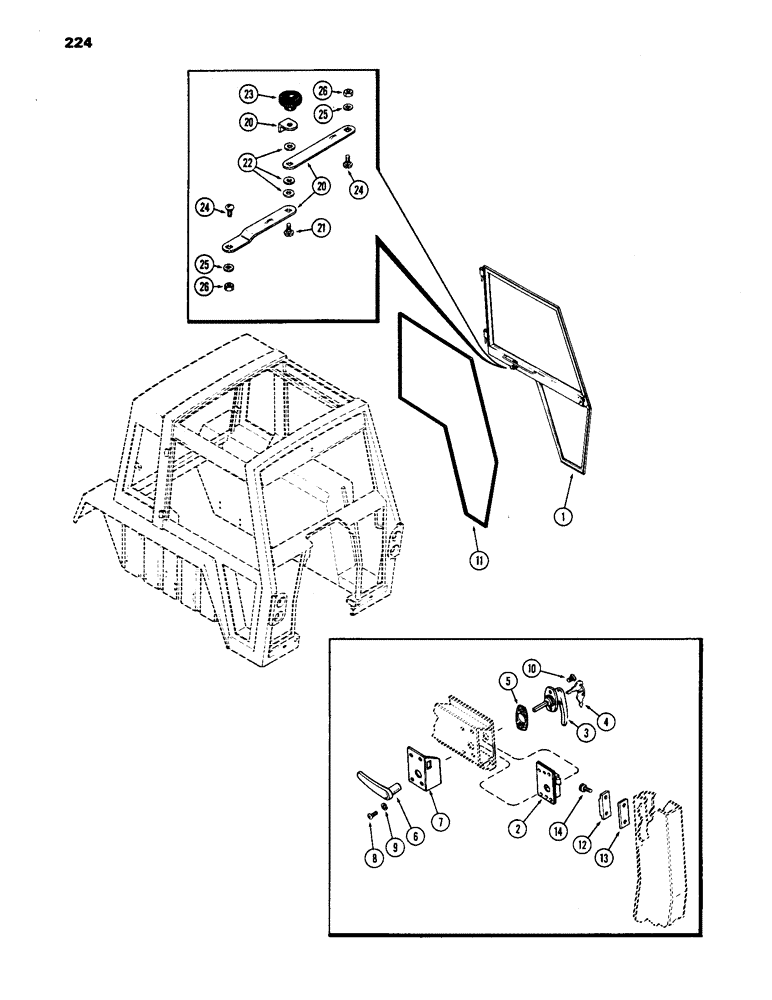

Схема запчастей Case IH 1170 - (224) - CAB, DOOR, HINSON (09) - CHASSIS/ATTACHMENTS
9
1
14
4
6
12
3
26
5
22
7
24
10
20
25
25
26
2
20
8
23
13
21
24
11

Артикул

Название

Примечание

Количество

1

A42559

DOOR ASSY. - cab (Order F89380), Includes: Ref. 2 - 11

1шт.

Order Glass From Fig. 289

1шт.

2

F89710

LOCK

- door (Replaces A42661)

1шт.

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

4шт.

3

A42572

HANDLE

- door, locking

1шт.

4

A42653

SET OF 2 KEYS

KEYS - door locking

2шт.

5

A42913

GASKET

- door handle

1шт.

6

A42588

HANDLE

- door, inside

1шт.

7

A42674

COVER

- door latch

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 1/2" N.C. rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. oval hd.

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - seal, door (Order A42510)

1шт.

A42510

FOAM

WEATHERSTRIP - door, 3/8 x 1/2 x 50 foot roll

1шт.

12

A42914

PLATE

- door striker

1шт.

13

A42696

SHIM

- door latch

3шт.

14

193-535

SCREW,SEMS, Slot Flt Hd, 1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. sltd. flat hd. sems

2шт.

20

A42927

ARM

ASSY. - door, Includes: Ref. 21 - 24

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr.

3шт.

22

F63299

WASHER

- friction

3шт.

23

A42918

KNOB

- regulator

1шт.

24

F63665

CLIP

- stop

1шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.

Выбрано товаров: 24
