Запчасти Case IH 1170 (009A) - AIR CLEANER, (451B) DIESEL ENGINE, 1ST USED TRAC. SERIAL NUMBER 8686295 (02) - ENGINE

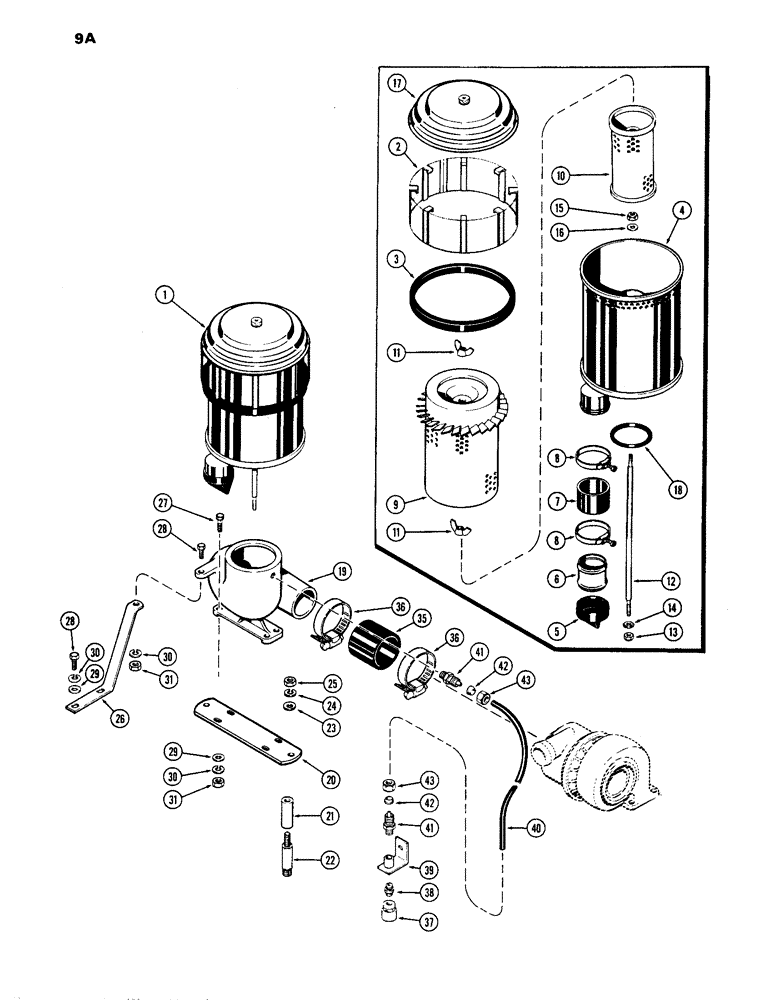

Схема запчастей Case IH 1170 - (009A) - AIR CLEANER, (451B) DIESEL ENGINE, 1ST USED TRAC. SERIAL NUMBER 8686295 (02) - ENGINE
13
1
36
24
5
6
29
35
8
23
16
21
38
18
41
29
10
11
28
11
42
31
4
28
8
43
14
9
31
19
20
17
2
42
43
36
39
41
3
30
30
40
15
26
25
7
22
27
12
30
37

Артикул

Название

Примечание

Количество

1

A64551

FAN

CLEANER ASSY. - complete w/screen, Includes: Ref. 2 - 18

1шт.

A62789

SCREEN ATT. - air cleaner, Includes: Ref. 2 and 3

1шт.

2

A62788

SCREEN

- air cleaner

1шт.

3

A62808

GASKET

- screen support (rubber)

1шт.

NSS

NOT SOLD SEPARAT

CLEANER ASSY. - (less screen), Includes: Ref. 4 - 18

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

L30414

VALVE

VACUATOR - valve

1шт.

A43706

KIT - adapter, vacuator valve

1шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP

2шт.

9

A43264

ELEMENT

- cleaner, outer

1шт.

10

A43265

ELEMENT

- safety

1шт.

11

F91761

WING NUT

- wing (incl. gasket)

2шт.

12

A43266

POST

- mounting

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" N.C. hex.

1шт.

14

A43267

SEAL

- (5/16 x 7/8 x 3/32" rubber & steel)

1шт.

15

131-81

LOCK NUT,7/16"-20, GB

NUT - lock, 7/16" N.F.

1шт.

16

195-105

WASHER,7/16"

- plain, 1/2 x 1-1/4 x 5/64"

1шт.

17

NLS

NO LONGER SERVICED

- air cleaner

1шт.

18

A43268

SEALING RING

SEAL - body

1шт.

19

A61626

ELBOW - support, air cleaner

1шт.

20

A61628

BRACKET - air cleaner mounting

1шт.

21

A61629

SPACER - mounting bracket (2-3/4" high)

2шт.

22

A61630

JACKSCREW - mounting bracket

2шт.

23

195-33

WASHER,1/2"

- plain, 17/32 x 1-1/16 x 5/64"

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

26

A61627

BRACKET - air cleaner support

1шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

28

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex.

4шт.

29

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

4шт.

30

92-6

LOCK WASHER,3/8"

7шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

5шт.

35

A61631

HOSE

- air intake (3" I.D. x 3-1/4" lg.)

1шт.

36

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

2шт.

37

A62574

INDICATOR

- air restriction

1шт.

38

D36264

FITTING

- safety (1/8" x 1/8" P.T.)

1шт.

39

A61940

BRACKET

- indicator

1шт.

40

A61938

TUBE - indicator, air restriction

1шт.

41

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

CONNECTOR - tube, 1/4" tube x 1/8" P.T.

2шт.

42

222-5185

SLEEVE,1/4" Tube

- nylon, 1/4" Tube

1шт.

43

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

Выбрано товаров: 43
