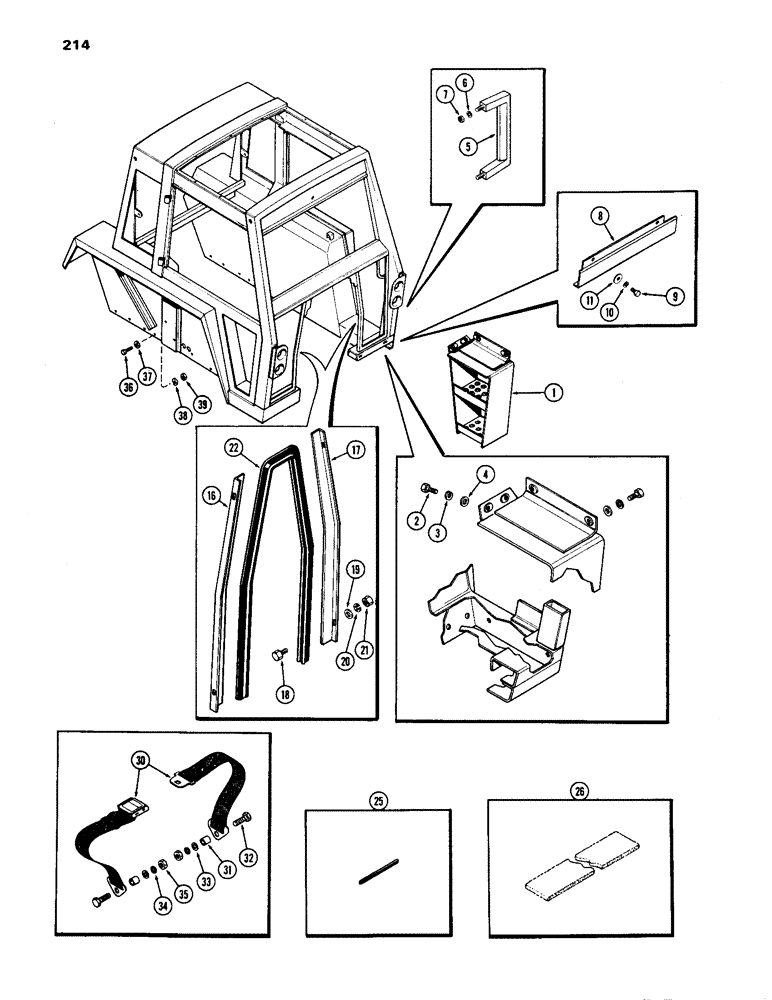

Запчасти Case IH 1170 (214) - CAB, LOWER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

A61143

STEP

ASSY.

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

195-26

WASHER

WASHER - 7/16 x 7/8 x 3/32"

4шт.

5

A60530

HANDLE

- cab mounting

1шт.

6

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

8

F89641

PANEL

- battery access

1шт.

9

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4 x N.C. hex.

2шт.

10

192-45

LOCK WASHER

- lock, 5/16"

2шт.

11

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

16

A61138

FILLER - dust shield, R.H.

1шт.

17

A61139

FILLER - dust shield, L.H.

1шт.

18

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

19

95-3

WASHER,#12

- 1/4 x 9/16 x 3/64"

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

25-104

NUT,1/4"-20, G5

4шт.

22

A62885

SEAL

- dust shield (Replaces A61140)

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

25

F63177

MOLDING - under hoses (6" long)

2шт.

To Be Attached With Adhesive 345 - 22

1шт.

26

F63219

FOAM

- temperature barrier, front

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

30

A60906

BELT

SAFETY BELT

1шт.

31

A60907

BUSHING

SPACER - anchor seat bolt

2шт.

32

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

33

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

2шт.

36

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

10шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

37

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16"

16шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.
