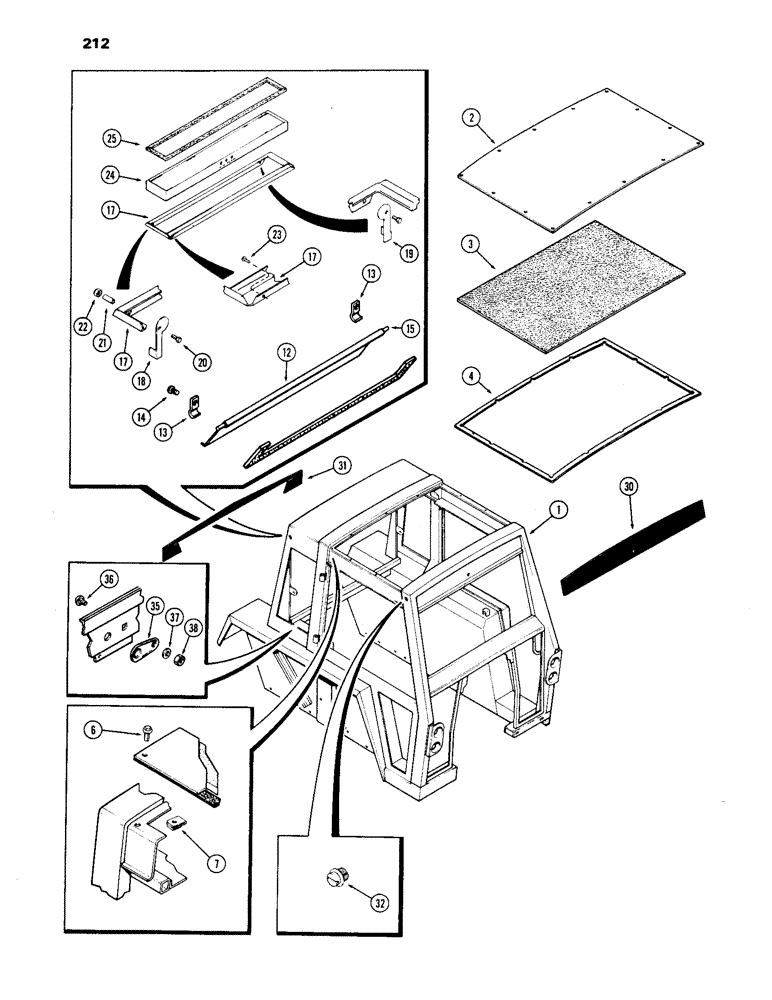

Запчасти Case IH 1170 (212) - CAB, UPPER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A62790
CAB - (w/o heater or air conditioner)(Mach. Item) (1st used tractor ser. #8676652)
1шт.
A62791
CAB - (w/air conditioner)(Mach. Item) (1st used tractor ser. #8676737)
1шт.
A62792
CAB - (w/heater)(Mach. Item) (1st used tractor ser. #8676655)
1шт.
A62793
CAB - (w/air conditioner & heater) (Mach. Item) (1st used tractor ser. #8676605)
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME ASSY. - cab
1шт.
2
F63196
ROOF
ASSY. - cab
1шт.
3
F63221
FOAM - roof temperature barrier
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL - roof, 1/4 x 3/8" (Order A42676)
1шт.
A42676
SEAL
- roof (25' roll)
1шт.
6
163-14
SCREW,Hex Wshr Hd, 1/4" - 20 x 1"
- 1/4 x 1" N.C. hex. washer hd. mach.
18шт.
7
131-617
NUT,Ret, J, 1/4"-20
- 1/4" "J" Type Tinnerman
18шт.
12
F89643
VALVE
ASSY. - pressure adjusting
1шт.
13
F63260
CLIP
- valve hinge
2шт.
14
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
- #10 x 1/2" phillips, self tapping
2шт.
15
NSS
NOT SOLD SEPARAT
SEAL - valve, 1/8 x 1/2 x 16-1/2" (Order A42905)
1шт.
A42905
FOAM
SEAL - valve (50' roll)
1шт.
17
F89645
PLATE
ASSY. - filter inlet
1шт.
18
F63267
CAM - latch, R.H.
1шт.
19
F63266
LATCH
CAM - latch, L.H.
1шт.
20
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
21
T32262
SPACER - cam bolt
2шт.
22
86625061
NUT,1/4"-20, GB
NUT - 1/4" N.C. hex., lock
2шт.
23
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
- #10 x 1/2" phillips, self-tapping
7шт.
24
A42573
FILTER
- air intake
1шт.
25
F63331
SEAL - filter side (1/4 x 3/4 x 5-3/32")
2шт.
26
F63332
SEAL
SEAL - filter front & rear (1/4 x 3/4 x 38-1/2")
2шт.
30
A42582
DECAL
- front panel
1шт.
31
321-1915
DECAL - rear crown
1шт.
32
353-550
PLUG,Slotted, 1/2"-13
Plastic, In lifting holes Slotted, 1/2"-13
4шт.
35
F12598
PLATE
COVER - utility
1шт.
36
111-107
CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2
BOLT - 1/4 x 1/2" N.C. carr.
1шт.
37
195-102
WASHER,1/4"
- 5/16 x 3/4 x 1/16"
1шт.
38
131-171
NUT - 1/4" N.C. Esna
1шт.
Выбрано товаров: 33
