Запчасти Case IH 1170 (206) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS

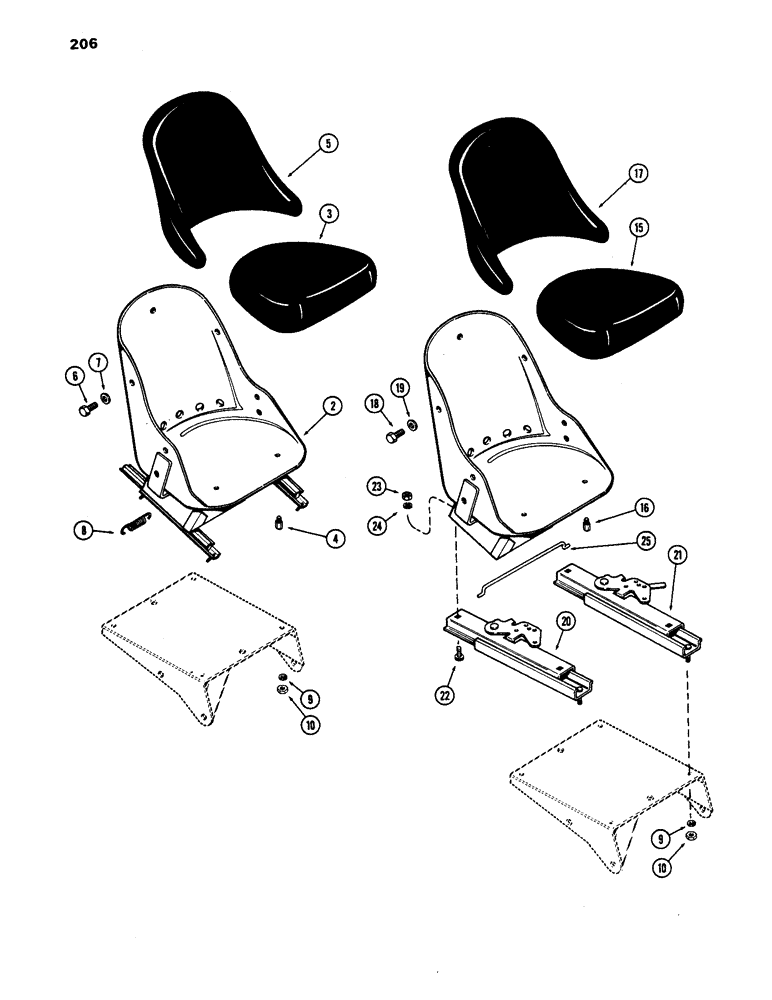

Схема запчастей Case IH 1170 - (206) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS
25
19
15
23
21
18
24
3
10
9
10
20
6
22
9
16
17
2
5
4
1
8

Артикул

Название

Примечание

Количество

A61223

SEAT

ASSY. - bucket (Order A64851), Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - seat (Order A64851)

1шт.

3

A42745

SEAT

CUSHION ASSY. - seat bottom

1шт.

4

L30534

X

PIN - cushion locating

2шт.

5

A42747

BACKREST

CUSHION ASSY. - seat backrest

1шт.

6

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

7

195-104

WASHER,3/8"

- 7/16 x 1 x 5/32"

5шт.

8

A42299

SPRING

- adjuster

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

A64851

SEAT

ASSY. - bucket (Replaces A61223), Includes: Ref. 15 - 25

1шт.

15

A42745

SEAT

CUSHION ASSY. - seat bottom

1шт.

16

L32870

PIN

- locating, seat cushion

1шт.

17

A42747

BACKREST

CUSHION ASSY. - backrest

1шт.

18

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

19

195-104

WASHER,3/8"

- plain, 7/16 x 1 x 5/32"

5шт.

20

A64818

ADJUSTER

- R.H., seat assy.

1шт.

21

A64819

ADJUSTER

- L.H., seat assy.

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

8шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

25

A64822

ROD - lock, adjuster

1шт.
