Запчасти Case IH 1170 (198) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

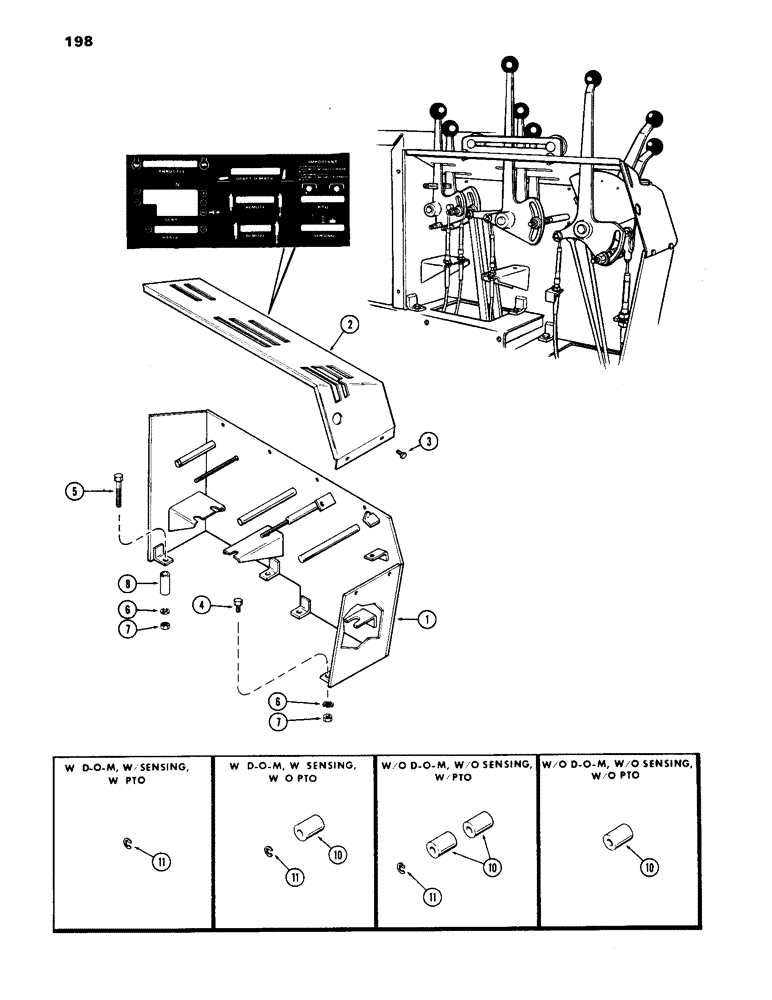

Схема запчастей Case IH 1170 - (198) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS
11
5
10
3
7
2
11
6
4
1
10
10
11
7
6
8

Артикул

Название

Примечание

Количество

1

A62422

CONSOLE - control (1st used trac. SN8670148)

1шт.

1

A60657

CONSOLE - control (used prior to trac. SN8670148)

1шт.

2

A59787

COVER

- control console

1шт.

3

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex.

6шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

4

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- 3/8 x 1-7/8" N.C. hex.

1шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

6

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

3шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

8

T32627

SPACER,5/8" Tube x 2"

- console

1шт.

10

A59994

SPACER

- D-O-M sensing & P.T.O. (See Insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, (see insets) #62, .480" Dia, E-Type

1шт.

321-3104 Decal Kit

1шт.
