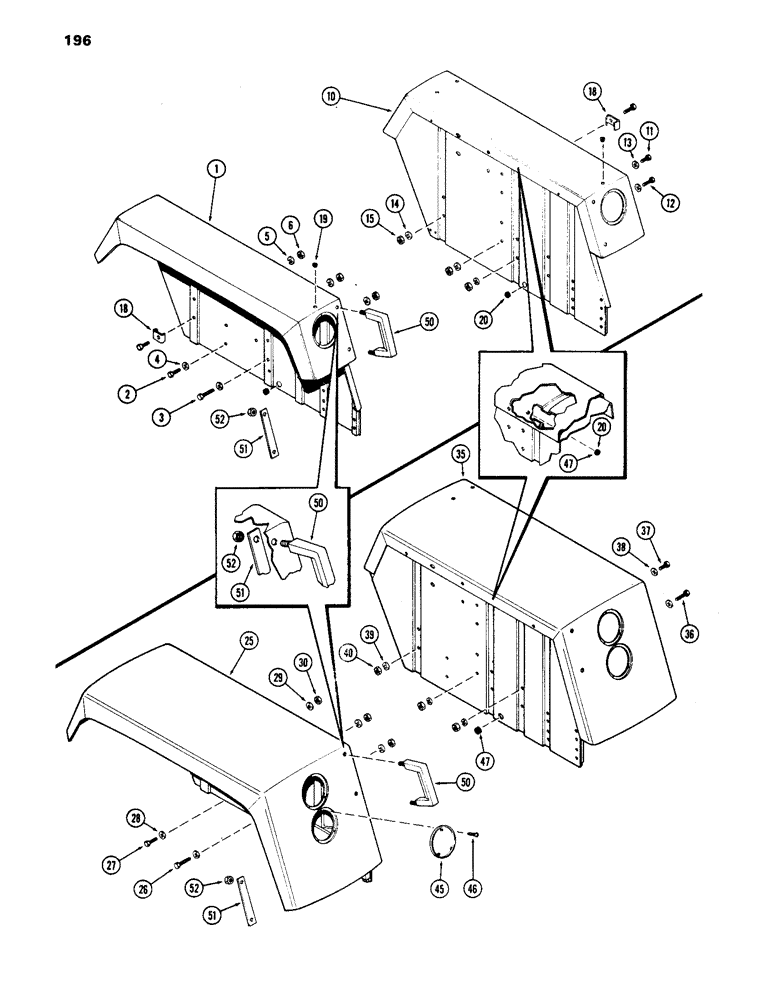

Запчасти Case IH 1170 (196) - FENDERS, 12" FENDER (09) - CHASSIS/ATTACHMENTS

1

A62296

FENDER

ASSY. - right hand (Replaces A60730)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

10

A62297

FENDER

ASSY. - left hand (Replaces A60731)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mounting

4шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16" button

1шт.

20

A59722

GROMMET

- wire harness

2шт.

25

A62304

FENDER

ASSY. - right hand (Replaces A60780), 24"

1шт.

26

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

24" fender Hex, 3/8"-16 x 2 1/2", G5

5шт.

27

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

24" fender Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

28

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 24" fender

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 24" fender 3/8"

6шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 24" fender 3/8"-16, G5

6шт.

35

A62309

FENDER

ASSY. - left hand (Replaces A60781), 24"

1шт.

36

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- 3/8 x 2-1/2" N.C. hex., 24" fender

3шт.

37

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/4" N.C. hex., 24" fender

2шт.

37

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

24" fender Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

38

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 24" fender

6шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 24" fender 3/8"

6шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 24" fender 3/8"-16, G5

6шт.

45

A59330

COVER

- cultivator light opening, 24" fender

1шт.

46

187-1050

SCREW

- #10 x 1/2" N.C. type "T" tap, 24" fender

3шт.

47

A59722

GROMMET

- wire harness, 24" fender

2шт.

50

A60530

HANDLE

- R.H. & L.H.

2шт.

51

A59338

PLATE

- handle mounting

1шт.

52

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock, handle

4шт.

77-610

BOLT (MACHINE)

SCREW - 3/8 x 5/8" N.C. slotted truss hd., handle

2шт.

Used Without Handle

1шт.

92-6

LOCK WASHER,3/8"

handle 3/8"

2шт.

Used Without Handle

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., handle

2шт.

Used Without Handle

1шт.
