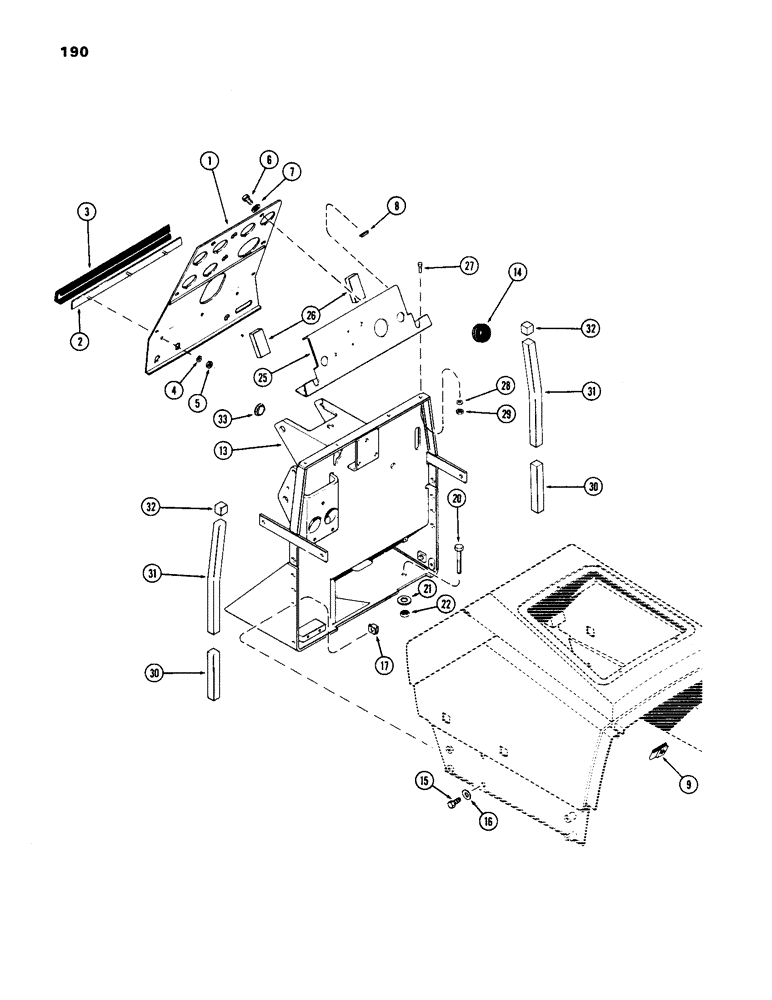

Запчасти Case IH 1170 (190) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A62016
PANEL
ASSY. - instrument
1шт.
2
A60957
PLATE ASSY. - moulding
1шт.
3
A60956
MOULDING - instrument panel bumper
1шт.
4
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
5
25-104
NUT,1/4"-20, G5
3шт.
6
A60266
SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK
- #10 x 5/8" N.C. hex., brass
6шт.
7
193-93
LOCK WASHER,#10
WASHER - Shakeproof, int. #10
6шт.
8
131-621
NUT,Ret, J, #10-24
- #10 N.C. Tinnerman
4шт.
9
131-619
SPRING NUT,J, #10 - 24, 0.031" Thk
RETAINER - #10 N.C. "J" type
2шт.
13
A61764
FIREWALL ASSY.
1шт.
14
A59719
GROMMET
- firewall, 1-1/8 x 2-1/2 x 1/2"
1шт.
15
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Firewall Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
16
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64", firewall
4шт.
17
131-608
NUT
- 3/8" N.C. hex. Tinnerman, firewall
4шт.
20
13-860
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
Firewall Hex, 1/2"-13 x 3 3/4", G5
2шт.
20
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Firewall Hex, 1/2"-13 x 2", G5
2шт.
21
195-36
WASHER
- 9/16 x 1-7/8 x 1/8", firewall
2шт.
22
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex., firewall
2шт.
22
131-1116
LOCK NUT,1/2"-13, GB
NUT - 1/2" N.C. hex., firewall
2шт.
25
A59803
BAFFLE ASSY. - steering wheel, firewall, Includes: Ref. 26
1шт.
26
A59805
FILLER
BAFFLE - air (See Note), firewall
2шт.
27
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
Firewall Hex, 1/4"-20 x 1", G5
4шт.
28
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Firewall 1/4"
4шт.
29
25-104
NUT,1/4"-20, G5
Firewall 1/4"-20, G5
4шт.
30
A60777
FOAM
BAFFLE - steering column support, lower, firewall
2шт.
To Be Attached With Adhesive 345 - 22
1шт.
31
A60776
FOAM
BAFFLE - steering column support, center, firewall
2шт.
To Be Attached With Adhesive 345 - 22
1шт.
32
A60775
BAFFLE - steering column support, upper, firewall
2шт.
To Be Attached With Adhesive 345 - 22
1шт.
33
205-61
HOLE PLUG BUTTON,1 1/2"
PLUG - 1-1/2" button, firewall
2шт.
Выбрано товаров: 31
