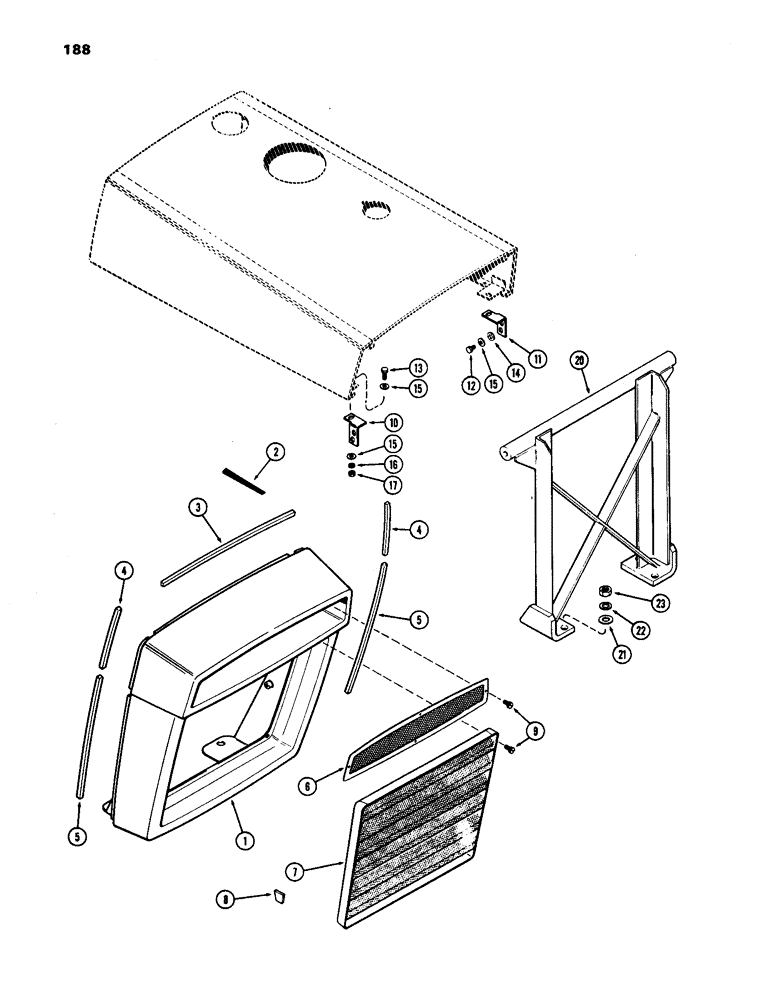

Запчасти Case IH 1170 (188) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A59160

GRILLE

- radiator (cast iron)

1шт.

1

A64244

PACKAGE, REPAIR

GRILLE - radiator (fiberglass) Replaces A62737)

1шт.

2

A62690

GUARD

TRIM - grille, sight guage

1шт.

3

A59746

SEAL

SPACER - hood to grille, center

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

4

A59747

GASKET

SPACER - hood to grille side, upper

2шт.

To Be Attached With Adhesive 345 - 22

1шт.

5

A59748

GASKET

SPACER - front side, Serial Range: sheets-grille

2шт.

To Be Attached With Adhesive 345 - 22

1шт.

6

A59754

GRILLE

SCREEN ASSY. - grille cap

1шт.

7

A59752

FILTER SCREEN

SCREEN ASSY. - grille

1шт.

8

A62211

FOAM

- grille screen spacer

12шт.

To Be Attached With Adhesive 345 - 22

1шт.

9

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. frl. hd. Type I

8шт.

10

A62742

BRACKET

- hood to grille, R.H.

1шт.

11

A62743

BRACKET

- hood to grille, L.H.

1шт.

12

113-145

BOLT - 5/16 x 3/4" N.C. hex.

4шт.

13

113-144

BOLT

- 5/16 x 1" N.C. hex.

2шт.

14

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

16

192-45

LOCK WASHER

- lock, 5/16" (black)

6шт.

17

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

2шт.

20

A60535

ATTACHMENT - implement support (Mach, Item)

1шт.

21

195-45

WASHER,3/4"

Implement support 3/4"

4шт.

22

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , Implement support 3/4"

4шт.

23

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" N.F. hex., implement support

4шт.
