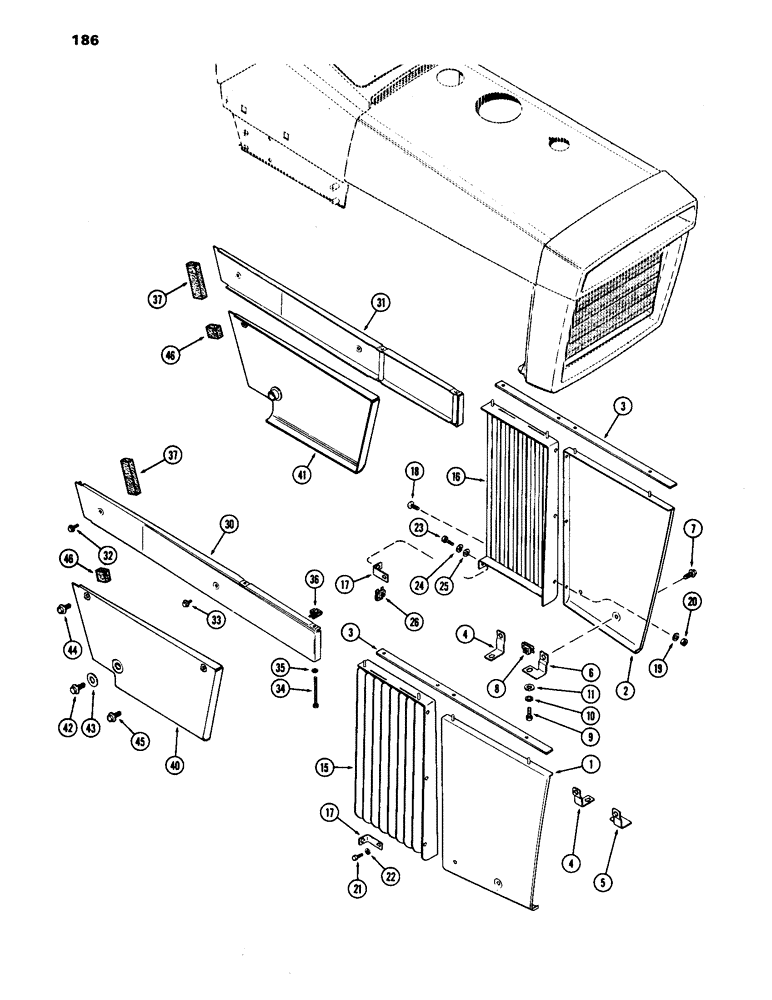

Запчасти Case IH 1170 (186) - SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A59128

PANEL

ASSY. - front side, R.H.

1шт.

2

A59365

PANEL

ASSY. - front side, L.H.

1шт.

3

A59239

SPACER

- hood & side sheets (See Note)

2шт.

4

A59364

BRACKET

- R.H. & L.H. side sheet mounting

2шт.

5

A59278

BRACKET

- R.H. side sheet mounting

1шт.

6

A59279

BRACKET - L.H. side sheet mounting

1шт.

7

121-109

SCREW - 5/16 x 1/2" self lock

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

4шт.

9

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3/4" N.C. hex.

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

15

A59440

VENTILATOR

LOUVER ASSY. - right hand (8 slat) (1st used trac. ser. no. 8665648)

1шт.

15

A59442

VENTILATOR

LOUVER ASSY. - right hand (10 slat) (used prior to trac. ser. no. 8665648)

1шт.

16

A59441

GUARD

LOUVER ASSY. - left hand (8 slat) (1st used trac. ser. no. 8665648)

1шт.

16

A59443

VENTILATOR

LOUVER ASSY. - left hand (10 slat) (used prior ot trac. ser. no. 8665648)

1шт.

17

A61042

BRACKET - louver mounting

2шт.

18

175-466

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" truss hd., louver

6шт.

19

92-5

LOCK WASHER,5/16"

louver 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., louver

6шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Louver Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

louver 5/16"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Louver Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

louver 3/8"

2шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", louver

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman, louver

2шт.

30

A60968

PANEL

ASSY. - decal, R.H.

1шт.

31

A60969

DISK HARROW

PANEL ASSY. - decal, L.H.

1шт.

32

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. self lock, decal panel

2шт.

33

121-110

BOLT - 5/16 x 1" N.C. self lock, decal panel

2шт.

34

113-23

BOLT - 1/4 x 4-3/4" N.C. hex., decal panel

6шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Decal panel 1/4"

6шт.

36

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER - Tinnerman, "J" type, decal panel

6шт.

37

A61879

FOAM

SEAL - decal panel, rear

2шт.

40

A60972

PANEL

ASSY. - rear side, R.H.

1шт.

41

A60973

PANEL

ASSY. - rear side, L.H.

1шт.

42

121-117

BOLT - 5/16 x 1-1/4" N.C. self lock, rear side panel

2шт.

43

195-80

WASHER - 3/8 x 1-1/8 x 1/16", rear side panel

2шт.

44

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. self lock, rear side panel

2шт.

45

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

Rear side panel Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

46

A61878

FOAM

SEAL - rear side panels

2шт.
