Запчасти Case IH 1170 (177A) - A34922 HYDRAULIC CYLINDER, 3-1/4" X 8" REMOTE PORTABLE CYLINDER, USED PRIOR TO TRAC. SER. NO 8675001 (09) - CHASSIS/ATTACHMENTS

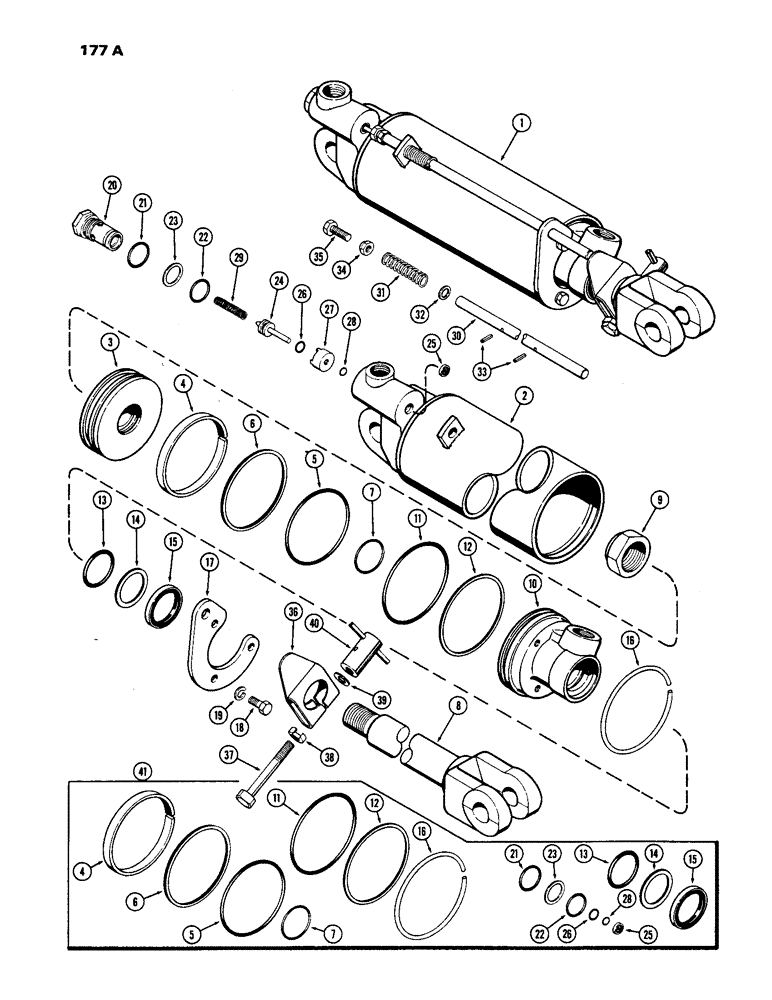

Схема запчастей Case IH 1170 - (177A) - A34922 HYDRAULIC CYLINDER, 3-1/4" X 8" REMOTE PORTABLE CYLINDER, USED PRIOR TO TRAC. SER. NO 8675001 (09) - CHASSIS/ATTACHMENTS
30
37
13
7
15
8
38
5
14
12
9
23
1
41
22
34
24
19
23
11
26
25
5
17
14
2
4
7
21
6
35
22
16
33
25
20
28
10
27
40
12
36
4
3
15
11
21
6
16
31
13
28
26
32
29
39
18

Артикул

Название

Примечание

Количество

1

A34922

CYLINDER

ASSY. - hydraulic, Includes: Ref. 2 - 40

1шт.

2

A41348

BODY - cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

G32091

SEALING RING

RING - teflon

1шт.

Part of cylinder seal kit A41347

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - 2-7/8 X 3-1/8 X 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

6

G32090

RING

- piston wear

1шт.

Part of cylinder seal kit A41347

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

8

A41179

ROD - piston

1шт.

9

A41189

LOCK NUT

NUT - 1" N.C. hex., lock

1шт.

10

A41180

BEARING

- cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 x 3-1/4 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of cylinder seal kit A41347

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

14

T22277

OIL SEAL

RING - "O" ring back-up

1шт.

Part of cylinder seal kit A41347

1шт.

15

D23962

SEAL

- oil, 1-1/4 x 1-1/2 x 1/4" (Replaces A41176)

1шт.

Part of cylinder seal kit A41347

1шт.

16

A41186

RING, LOCKING

RING - bearing lock

1шт.

Part of cylinder seal kit A41347

1шт.

17

A41182

PLATE - cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - valve

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - 7/8 x 1-1/16 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - 11/16 x 7/8 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

23

A41346

RING

- "O" ring back-up

1шт.

Part of cylinder seal kit A41347

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

G31932

WIPER SEAL

WIPER - 3/16 x 1/2 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

26

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 3/16 x 3/8 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - 23/64 x 9/16 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex., lock

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

A41349

STOP

- cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- 1/2 x 7/8 x 1/16"

1шт.

40

A41615

LOCK NUT

NUT - 5/16" N.F. hex., lock

1шт.

41

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT - cylinder seal, Incl. Refs. 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 21, 22, 23, 25, 26 and 28

1шт.
