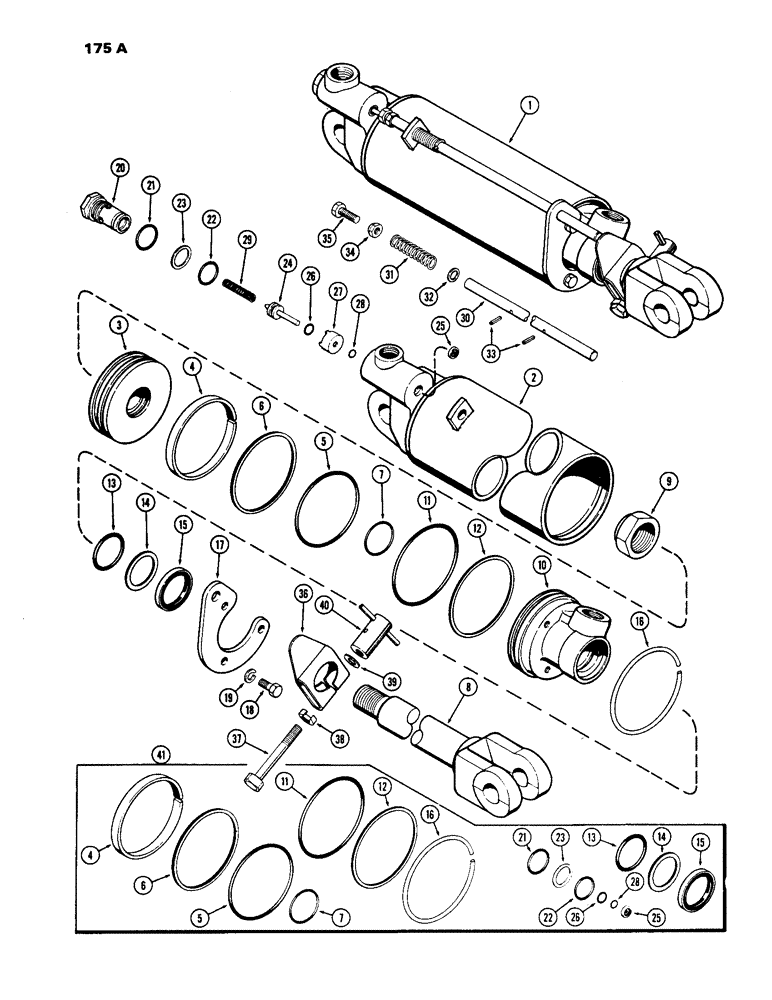

Запчасти Case IH 1170 (175A) - A34923 HYDRAULIC CYLINDER, 4" X 8" REMOTE PORTABLE CYLINDER, USED PRIOR TO TRAC. SER.NO. 8675001 (09) - CHASSIS/ATTACHMENTS

1

A34923

CYLINDER ASSY. - hydraulic, Includes: Ref. 2 - 40

1шт.

2

A41354

BODY - cylinder

1шт.

3

A41357

PISTON - cylinder

1шт.

4

G31928

RING

- outer, teflon

1шт.

Part of seal cylinder kit A41350

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - 3-5/8 x 3-7/8 x 1/8"

1шт.

Part of seal cylinder kit A41350

1шт.

6

G31927

RING

- piston wear

1шт.

Part of seal cylinder kit A41350

1шт.

7

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1-1/2 x 1-3/4 x 1/8"

1шт.

Part of seal cylinder kit A41350

1шт.

8

A41151

ROD - piston

1шт.

9

A41168

LOCK NUT

NUT - 1-1/8" N.C. hex., lock

1шт.

10

A41148

BEARING

- cylinder

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - 3-3/4 x 4 x 1/8"

1шт.

Part of seal cylinder kit A41350

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of seal cylinder kit A41350

1шт.

13

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING - 1-1/2 x 1-7/8 x 3/16"

1шт.

Part of seal cylinder kit A41350

1шт.

14

T31052

RING

- "O" ring back-up

1шт.

Part of seal cylinder kit A41350

1шт.

15

A41785

WIPER SEAL

SEAL - oil, 1-1/2 x 2 x 1/4"

1шт.

Part of seal cylinder kit A41350

1шт.

16

A41171

RING, LOCKING

RING - bearing lock

1шт.

Part of seal cylinder kit A41350

1шт.

17

A41158

PLATE - end

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

19

92-5

LOCK WASHER,5/16"

3шт.

20

A41351

PLUG - valve

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - 7/8 X 1/16 X 3/32"

1шт.

Part of seal cylinder kit A41350

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - 11/16 x 7/8 x 3/32"

1шт.

23

A41346

RING

- "O" ring back-up

1шт.

Part of seal cylinder kit A41350

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

G31932

WIPER SEAL

WIPER - 3/16 x 1/2 x 1/8"

1шт.

Part of seal cylinder kit A41350

1шт.

26

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 3/16 x 3/8 x 3/32"

1шт.

Part of seal cylinder kit A41350

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - 23/64 x 9/16 x 3/32"

1шт.

Part of seal cylinder kit A41350

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex., lock

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

A41149

CLAMP

STOP - limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- 1/2 x 7/8 x 1/16"

1шт.

40

A41615

LOCK NUT

NUT - 5/16" N.F. hex., lock

1шт.

41

A41350

SEAL

KIT - seal, cylinder, Incl. Refs. 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 21, 22, 23, 25, 26 and 28

1шт.
