Запчасти Case IH 1170 (173A) - G33769 HYDRAULIC CYLINDER, 4" X 8" REMOTE PORTABLE CYLINDER, 1ST TRAC SER.NO. 8675001 (09) - CHASSIS/ATTACHMENTS

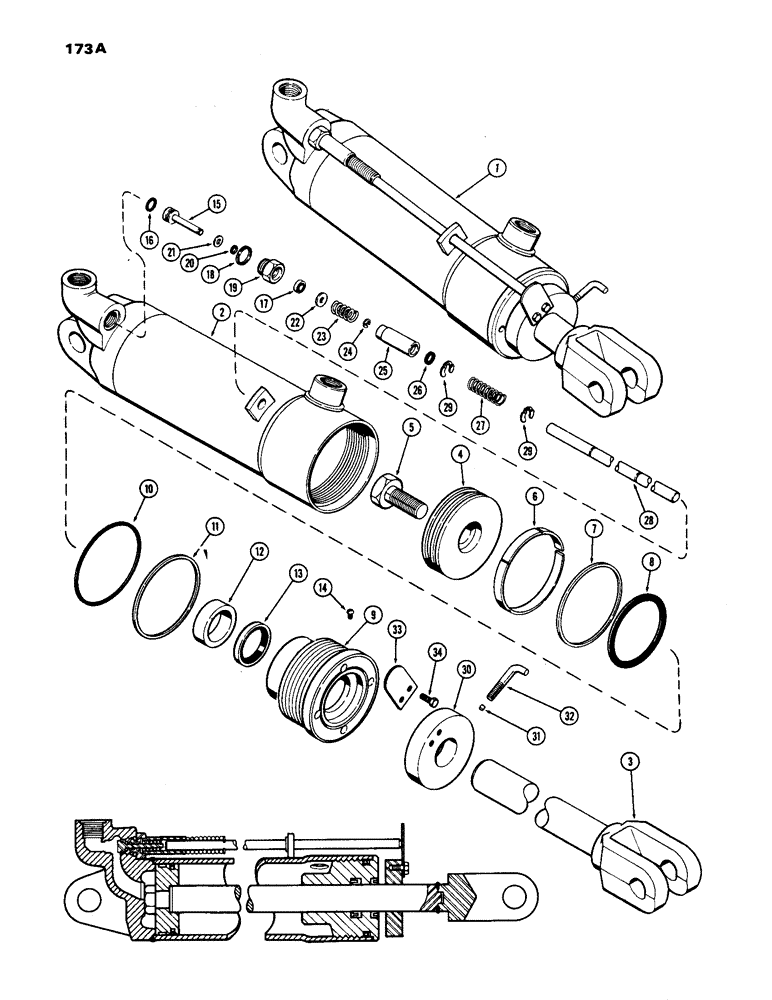

Схема запчастей Case IH 1170 - (173A) - G33769 HYDRAULIC CYLINDER, 4" X 8" REMOTE PORTABLE CYLINDER, 1ST TRAC SER.NO. 8675001 (09) - CHASSIS/ATTACHMENTS
23
15
1
14
29
22
2
33
25
12
9
18
34
16
19
28
29
4
7
30
3
32
8
5
10
17
20
21
24
31
11
6
26
27
13

Артикул

Название

Примечание

Количество

1

G33769

CYLINDER

ASSY. - hydraulic (Replaces G31945), Includes: Ref. 2 - 34

1шт.

2

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

3

G33772

ROD

- piston

1шт.

4

G33774

PISTON

- cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G31927

RING

- wear, piston (nylon)

1шт.

7

G31928

RING

- seal, piston (teflon)

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - 3-1/2 x 3-3/4 x 1/8"

1шт.

9

G33775

GLAND - packing, piston rod (w/identification groove)

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8"

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

12

D36936

SEAL -pisotn rod (1-1/2 x 2 x 7/16")

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

SCRAPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" rd. hd. slotted self-tapping

1шт.

15

G31943

PLUNGER

-valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - 27/64 x 5/8 x 3/32"

1шт.

17

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8")

1шт.

19

G31933

GLAND

- valve assy., Includes: Ref. 20 and 21

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 11/64 x 3/8 x 7/64"

1шт.

21

G31948

WASHER

- 13/64 x 13/32 x 1/16"

1шт.

22

G31929

WASHER

- spring backing (7/32 x 5/8 x 1/16")

1шт.

23

G31980

SPRING

- plunger return (1" long)

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

"O" RING - 7/16 x 9/16 x 1/16"

1шт.

27

G31934

SPRING

- rod return (2-5/16" long)

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

- retaining ("Y" type)

2шт.

30

G32074

COLLAR

- stop

1шт.

31

G32076

PLUG

- locking

1шт.

32

G32077

BOLT

- hook

1шт.

33

G32075

PLATE

- stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

35

G31946

KIT

- cylinder repair (Includes Ref. 6, 7, 8, 10, 11, 13, 16, 17, 18, 20, 21, 22, 23, 24, 25 & 26)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 35
