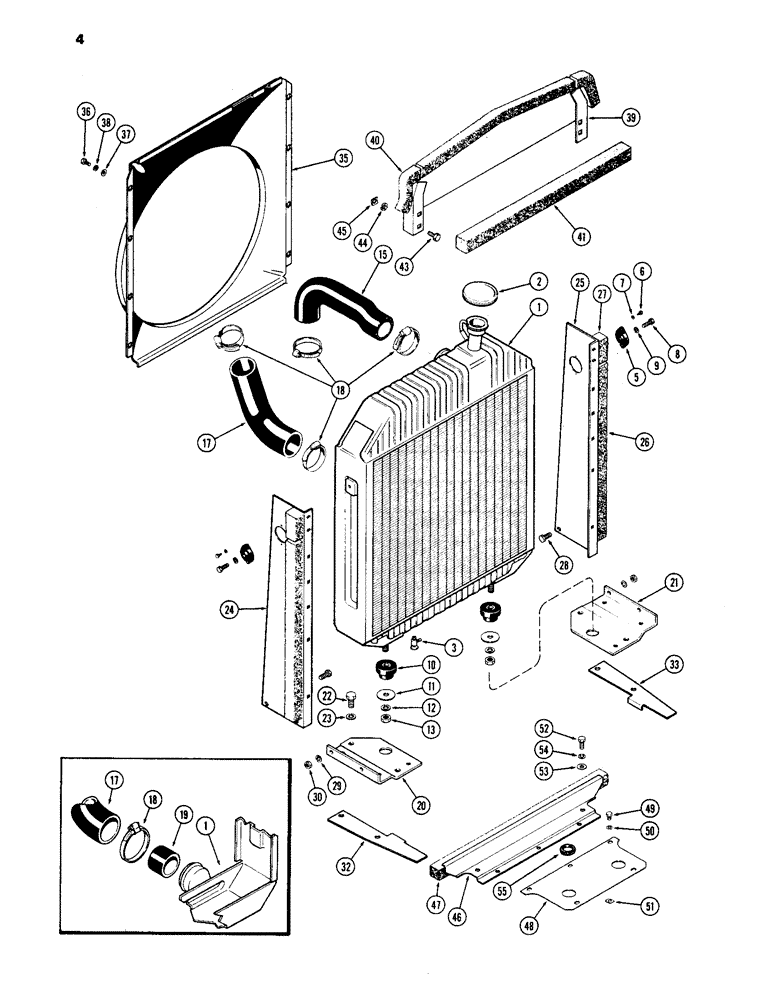

Запчасти Case IH 1170 (004) - RADIATOR AND ATTACHING PARTS, (451B) DIESEL ENGINE (02) - ENGINE

1

A62852

RADIATOR

- (1st used eng. ser. no. 2323001)

1шт.

1

A61624

RADIATOR - (used prior to eng. ser. no. 2323001)

1шт.

2

A59861

RADIATOR

CAP - radiator (w/o air conditioner)(7 P.S.I.)

1шт.

2

A61784

CAP

- radiator (w/airconditioner)(14 P.S.I.)

1шт.

2a

A141846

CAP

- radiator (non-vented)(10 P.S.I.)

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

5

A59862

ANCHOR

MOUNT - radiator support

2шт.

6

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6-32 x 3/8" rd. hd.

4шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

A59863

MOUNTING PARTS

MOUNT - center bonded

2шт.

11

48560

BRAKE LINING

- center bonded mount snubber

2шт.

12

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59887

LARGE HOSE,2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Inlet 2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

1шт.

17

A61931

HOSE,2.62" ID x 5.50", SAE 20R4 CLASS SC

RADIATOR HOSE, , Outlet 2.62" ID x 5.50", SAE 20R4 CLASS SC

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, 2-5/16 to 3-1/4"

4шт.

19

A7241

HOSE - radiator outlet filler, 2-1/4 x 2-5/8 x 1-3/4" (used on radiators w/narrow outlet neck)

1шт.

20

A59178

PLATE - radiator support, R.H.

1шт.

21

A59179

PLATE - radiator support, L.H.

1шт.

22

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

A61718

SUPPORT ASSY. - radiator side, R.H.

1шт.

25

A61719

SUPPORT

ASSY. - radiator side, L.H., Includes: Ref. 26 and 27

1шт.

26

A59873

SEAL

- radiator side, lower

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

27

A59890

SEAL

- radiator side, upper (See Note)

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

32

A61662

BAFFLE

- radiator lower, R.H.

1шт.

33

A61663

BAFFLE

- radiator lower, L.H.

1шт.

35

A59891

GUARD

SHROUD - fan

1шт.

36

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

37

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

8шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

39

A61726

BAFFLE ASSY. - radiator front, Includes: Ref. 40 and 41

1шт.

40

A61727

SEAL

- radiator top

1шт.

41

A59877

SEAL

- radiator upper cone

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

131-611

NUT,Ret, 1/4"-20

- 1/4" N.C. Tinnerman

4шт.

46

A59879

BAFFLE ASSY. - radiator lower, rear half, Includes: Ref. 47

1шт.

47

A59880

SEAL

- radiator bottom

1шт.

To Be Attached With Adhesive 345 - 22

1шт.

48

A59881

BAFFLE - radiator lower, front half

1шт.

49

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

51

131-610

SPRING NUT,U, Ret, 1/4"-20

Tinnerman U, Ret, 1/4"-20

3шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

53

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

54

92-6

LOCK WASHER,3/8"

4шт.

55

A27519

GROMMET

- radiator front lower baffle

2шт.
