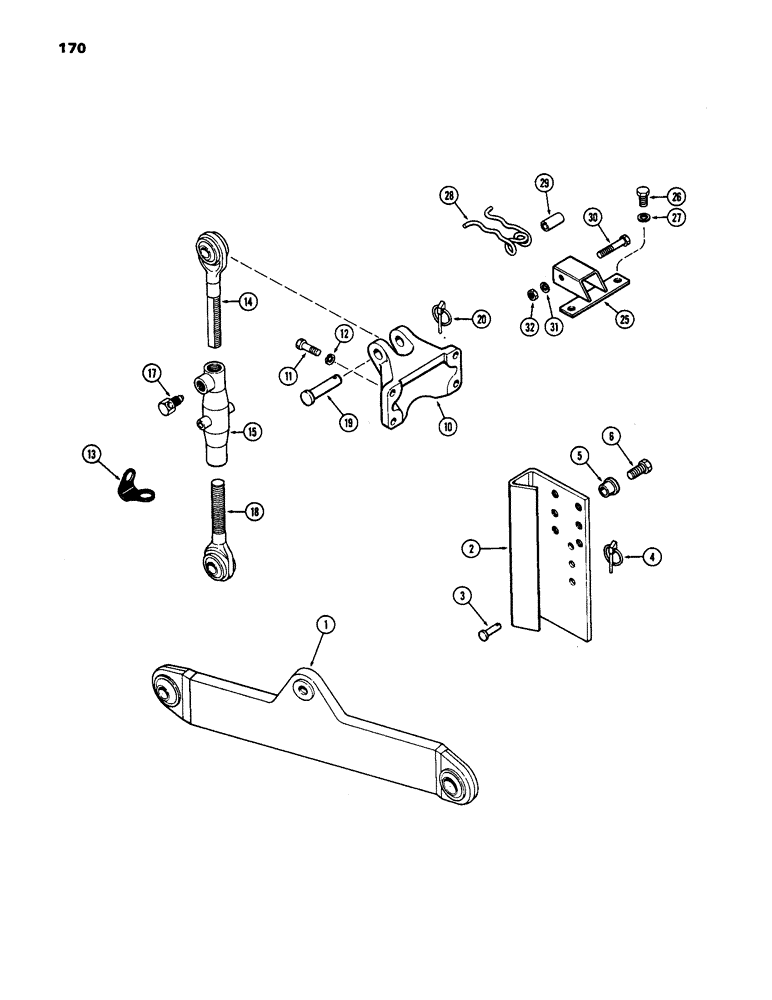

Запчасти Case IH 1170 (170) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

1

A62378

ARM

- draft, R.H.

1шт.

1

A62379

ARM

- draft, L.H..

1шт.

2

A61700

STOP

- draft arm sway, R.H.

1шт.

2

A61701

STOP

- draft arm sway, L.H.

1шт.

3

A60603

PIN

- stop mounting

2шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick

2шт.

5

A60597

SPACER

- stop

2шт.

6

113-744

X

BOLT - 3/4 x 1-3/4" N.C. hex.

2шт.

10

A60667

BRACKET

- mounting, upper link

1шт.

11

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

A62986

HOLDER

KEEPER - lock screw

2шт.

14

A62289

SCREW,1 1/4" - 12 x 5.60"

- upper link, tractor end

1шт.

15

A62287

TURNBUCKLE

- link

1шт.

17

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- link locking

1шт.

18

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- link, implement end

1шт.

19

A33432

PIN

- link to bracket (one shipped loose in tool box)

2шт.

20

A33509

PIN,11.18mm OD

ASSY. - klick (one shipped loose in tool box)

2шт.

25

A60664

BRACKET

- turnbuckle transport clip

1шт.

26

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

A61684

CLIP

- turnbuckle retaining

1шт.

29

A60246

SPACER

- clip

1шт.

30

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex.

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.
