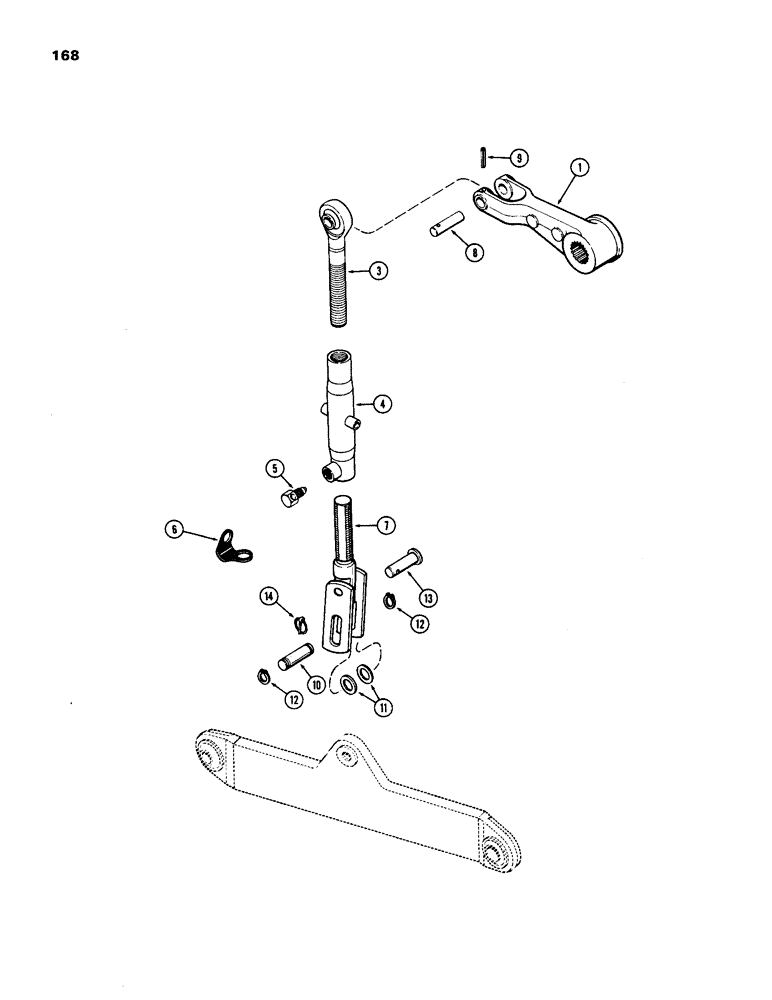

Запчасти Case IH 1170 (168) - THREE POINT HITCH, LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

- rockshaft, lift links, R.H. & L.H.

2шт.

3

A61470

LINK ASSY. - lift, upper

2шт.

4

A61795

TURNBUCKLE ASSY. - lift link

2шт.

5

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locating

2шт.

6

A62986

HOLDER

KEEPER - lock screw

2шт.

7

A61474

LINK ASSY. - lift, lower

2шт.

8

A32268

PIN

- lift arm to lift link

2шт.

9

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - 1/4 x 2" type 3, groove

2шт.

10

A60979

PIN

- lift link to draft arm

2шт.

11

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 2-1/2 x 1-1/16 x 11/64"

4шт.

12

A34428

SNAP RING,#98, Ext

Ring, Snap, , link pin #98, Ext

4шт.

13

A62243

PIN

- float lock out

2шт.

14

A30338

PIN

ASSY. - klik

2шт.
